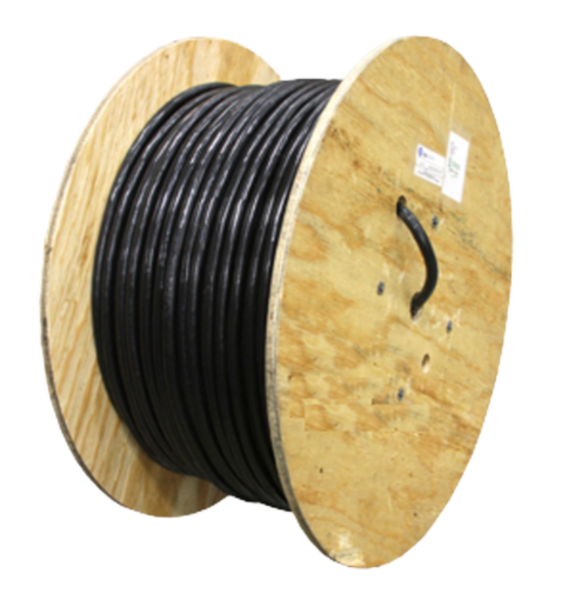

⚫ "J" Multi-Pair Thermocouple Extension Wire
Key Features
✅ Black ⚫ Type-J thermocouple color code
✅ 20 AWG solid conductors for stable long-distance runs
✅ Polyvinyl insulation rated to 🌡 220°F (105°C)
✅ Ideal for high-density multi-channel “J” wiring systems
✅ Shielded to reduce electrical noise
✅ UL-approved construction for industrial performance
MPW-J-20-PP-12
Multi-Pair Thermocouple Extension Wire: Type "J", 20 Ga. Solid, polyvinyl, polyvinyl individual, UL approved, 12 pair, , Accuracy: ±4°F / 2°C, Max Temperature of polyvinyl 220°F / 105°
| Type of Sensor: | "J" Thermocouple Extension Wire |
| Temperature Sensing Range: | Jacket Max Temp is 105°C / 220°F |
| Sensor Dimensions: | 20. Ga. Solid |
| Calibration Available: | Yes (purchased separately) |
| Sold As: | Feet |
| Storage Conditions: | Mylar Shield and Drain Wire |
| Number of Sensors: | 12 Pair |
- “J” Multi-Pair Thermocouple Extension Wire
- Expert Technical Support
TIPWRJ014: MPW-J-20-PP-12-UL Approved
Multipair Thermocouple Extension Wire: Type "J", 20 ga, solid conductors, PVC Jacket
This specification covers a 12 pair cable, Extension Grade, Standard Limits, Type J, 20-awg solid insulated with PVC. Singles are twisted into 12 pairs and cabled together with an aluminum mylar shield and drain. The bundle is jacketed with PVC. ANSI color code and UL PLTC rated.
Conductor:
Size: 20 Awg Solid
Stranding: None
Nominal OD: .032”
Positive Leg: JP Fe
Negative Leg: JN CuNi
Insulation:
Material: Extruded PVC 105°C
Nominal Wall: .015”
Nominal OD: .062”
Color Code: (+) White, (-) Red
Individual Pairs:
Nominal Lay: 2.50” Left Hand Lay
Nominal OD: .124”
Numbers: 1 through 12
Cable:
Pairs: 12 twisted pairs
Nominal Lay Length: 8.0” Left Hand Lay
Communication Wire: 22 awg stranded tinned copper, Orange PVC
Separator: Clear Mylar tape, minimum 25% overlap
Drain Wire: 22 awg stranded tinned copper
Shield: Aluminum Mylar tape, minimum 25% overlap
Nominal OD: .470”
Jacket:
Material: Extruded PVC 105°C
Nominal Wall: .055”
Nominal Diameter: .580”
Color: Black
Ripcord: Yes
Jacket printed with UL designation.
Lengths:
Standard Lengths are 1,000Ft ± 10% or customer specified
