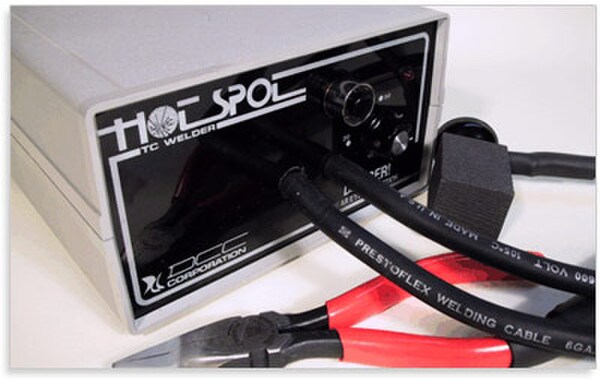

🔋 Hot Spot I Portable T/C Welder
The Hot Spot I Portable Thermocouple Welder is designed to produce repeatable welds on fine-gauge thermocouple wire for sensor fabrication, repair, laboratory, and field applications. Its compact 7 lb design allows it to be used on the bench or carried to the installation site.
The welder operates from 120 VAC, 60 Hz power or its rechargeable battery and provides adjustable weld energy from 5 to 50 watt-seconds. It can weld thermocouple wire from 36 to 24 AWG, with capability up to 20 AWG for Type J, K, and E wire
──────────────────────────
Ideal Applications
🟡 Type K thermocouple fabrication
⚫ Type J thermocouple fabrication
🧵 Fine-gauge thermocouple junction welding
🔧 Thermocouple repair and maintenance
🧪 Laboratory and R&D applications
🏭 Industrial maintenance departments
🧰 Field thermocouple fabrication
🔬 Test and instrumentation laboratories
- Part Number DCCHEA002
- SIZE - 3.25" High 6.25" Deep 6" Wide (less handle)
- WEIGHT- 7 Pounds
- STORED WELD ENERGY - 5 to 50 Watt seconds
- WELD CAPABILITY - Welds wire pairs of #24 gauge or finer (#20 for J K E)
- CYCLE TIME - Can perform 5 to 10 welds per minute depending on energy settings.
- CONTROLS - Provides energy adjustment control and visual and audio indication of weld charge cycle completion.
- POWER - Uses 120 VAC 60 Hz line power.
- WARRANTY - 1 year
- SELECT for 220V / 50 Hz Model
- Thermocouple Welder
- 4.5" Wire Holding Pliers
- Eye Shielding - Protective Goggles
- Carbon Block
- Instructions
- Expert Technical Support
Compliance & Risk Mitigation
⚡ Adjustable energy supports controlled welding
🧵 Wide wire range supports sensor fabrication
🔋 Battery operation supports field service
🎛️ Indicators help confirm operating status
🧰 Portable design supports on-site repairs
👁️ Appropriate PPE protects the operator
🔌 Verify electrical requirements before operation
Select the proper weld-energy setting and technique for the thermocouple alloy and wire gauge being joined. Follow the manufacturer's operating instructions and applicable workplace procedures for electrical, eye, burn, and welding hazards. Completed thermocouples should be inspected and, where measurement validation is required, calibrated as part of the complete temperature measurement system to confirm proper operation and measurement accuracy.
