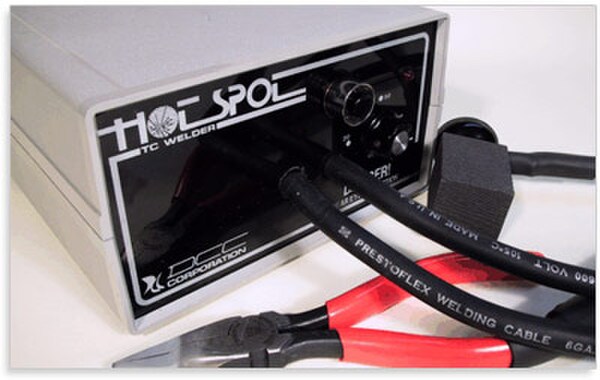

Hot Spot I Thermocouple Welder 220V / 50Hz

(0)No Reviews yet
Log in to see price
SKU: DCCHEA005
Provided: Each

🔧 Fast. Reliable. Compact. Weld Anywhere.
This U.S.-made thermocouple welder produces consistent, high-quality welds on fine-gauge wire, ideal for both field and bench use.

✅ Input Power: 220V AC / 50Hz (Rechargeable battery or line)
✅ Weld Energy: Adjustable 5–50 watt-seconds
✅ Weld Capability: #36 to #24 gauge wire (#20 for J, K, E types)
✅ Cycle Time: 5–10 welds per minute
✅ Control Panel: Energy adjustment, visual & audio indicators
✅ Size: 3.25" H × 6.25" D × 6" W (excluding handle)
✅ Weight: 7 lbs (portable, rugged design)
✅ Multi-Use: Proven, repeatable welds on thermocouple wire
✅ Optional 120V / 60Hz model available

📦 Browse the related products below, explore compatible cables, sensors, and suggested accessories that integrate with this model.

🛒 Add to Cart Now or 📞 Call 800-847-8367 for expert guidance.

Notable Features

Back
HOT SPOT I (220V 50HZ Model) T/C Welder Hot Spot I Welder, 4 1/2" Wire Holding Pliers, Eye Shielding Protective Goggles, Carbon Block, Instructions. Operates on Battery or 220V. SIZE - 3 1/4" High, 6" Wide, 6 1/4" Deep WEIGHT - 7 Pounds STORED WELD ENERGY - 5 to 50 Watt seconds WIRE GAUGE - Welds wire pairs of #24 gauge or finer (#20 for J,K & E) CYCLE TIME - Can perform 5 to 10 welds per minute, depending on energy setting. CONTROLS - Provides energy adjustment control, and visual and audio indication of weld charge cycle completion. POWER - Will operate from either AC lines or self-charging internal battery. Will perform several hundred welds on charged battery. 220 VAC 50 Hz line power. WARRANTY - 1 year
Back
  • Thermocouple Welder 220V / 50Hz
  • 4.5" Wire Holding Pliers
  • Eye Shielding - Protective Goggles
  • Carbon Block Instructions
  • Expert Technical Support
