⚫ Type J 24 Ga. TC Grade Wire

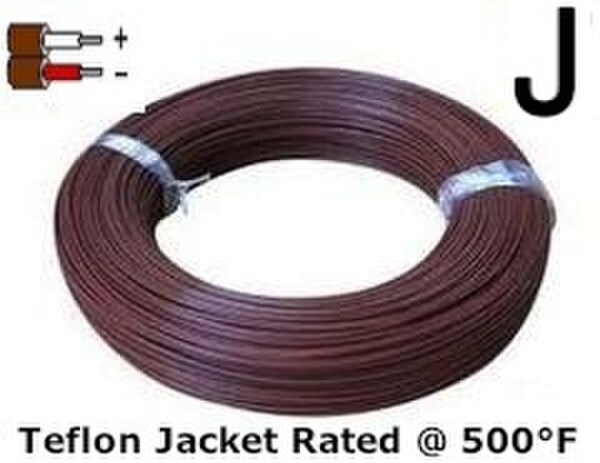

This Type J thermocouple-grade wire uses 24 AWG solid Iron (+) and Constantan (-) conductors with FEP insulation rated to 400°F (204°C). It is designed for fabricating Type J thermocouples and carrying temperature signals directly from the sensing junction.

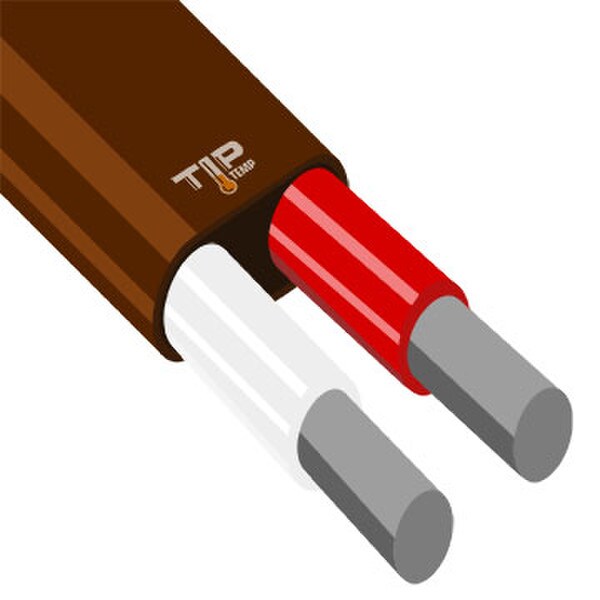

The white Iron (+) conductor is magnetic, helping identify polarity during installation. Standard accuracy is ±4°F (±2°C) per ASTM standards, with a recommended maximum signal distance of approximately 110 ft without amplification.
──────────────────────────
Ideal Applications
🌡 Custom Type J thermocouple fabrication
🏭 Industrial process temperature measurement
🔥 Ovens and heating equipment
⚙️ Machinery and equipment monitoring
📈 Data acquisition and recording systems
🧪 Laboratory and test applications
🔧 OEM temperature sensing assemblies
| J | + Iron - Constantan | Positive = White Negative = Red | |||
| Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
GLASS BRAID GLASS BRAID | 900 F 482 C | 20 | solid | 280 ft | |
| 20 | stranded | 280 ft | IWJ-20s-GG | ||
| 24 | solid | 110 ft | IWJ-24-GG | ||
| 24 | stranded | 110 ft | IWJ-24s-GG | ||
| 28 | solid | 44 ft | IWJ-28-GG | ||
| 30 | solid | 27 ft | IWJ-30-GG | ||
| 36 | solid | 7 ft | IWJ-36-GG | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 280 ft | IWJ-20-GG-SSOB | |
| 20 | stranded | 280 ft | IWJ-20s-GG-SSOB | ||
| 24 | solid | 110 ft | IWJ-24-GG-SSOB | ||
| 24 | stranded | 110 ft | IWJ-24s-GG-SSOB | ||
TEFLON TEFLON | 500 F 260 C | 20 | solid | 280 ft | IWJ-20-TT |
| 20 | stranded | 280 ft | IWJ-20s-TT | ||
| 22 | stranded | 200 ft | IWJ-22s-TT | ||
| 24 | stranded | 110 ft | IWJ-24s-TT | ||
| 24 | solid | 110 ft | IWJ-24-TT | ||
| 30 | solid | 27 ft | IWJ-30-TT | ||
| 36 | solid | 7 ft | IWJ-36-TT | ||
| 40 | solid | 8 in | IWJ-40-TT | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 280 ft | IWJ-20-TT-SSOB | |
| 20 | stranded | 280 ft | IWJ-20s-TT-SSOB | ||
| 24 | solid | 110 ft | IWJ-24-TT-SSOB | ||
| 24 | stranded | 110 ft | IWJ-24s-TT-SSOB | ||
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
- Part Number IWJ-24-TT / TIPWRJ009
- Type "J" Wire, FEP Teflon Jacket 24 Ga. Solid
- Teflon FEP is rated at max 400°F / 204°C
- Accuracy ±2°C / 4°F per ASTM standards.
- Max Distance Signal will travel is 110 Ft. without amplification.
- (White ) Iron + / (Red) Constantan ( White is Magnetic )
- Type "J" thermocouple grade wire Solid 24 Ga. - cut to your required length
- Expert Technical Support
Compliance & Risk Mitigation
⚫ Maintains Type J alloy compatibility
🧵 TC-grade wire supports direct measurement
🔴 Correct polarity helps prevent reading errors
🧲 Magnetic Iron aids conductor identification
🔥 FEP supports temperatures to 400°F
↔️ Observe recommended signal distance
💧 Protect Iron conductor from moisture
Detailed Specifications For Extension Wire
Use with compatible Type J thermocouple circuits and instrumentation. Verify polarity, insulation limits, installation environment, and required signal distance before use. Protect the Iron (+) conductor from moisture where practical to reduce oxidation and corrosion. Where documented measurement validation is required, annual calibration of the complete temperature measurement system is important for confirming continued accuracy and proper operation.
──────────────────────────
