⚙️🔥 HotSpot PLUS CD Welder

$2,500.00

Quantity	Price

SKU: DCCHEA006

Provided: Each

Capacitor Discharge Welder for Sensors & Studs

──────────────────────────

Quick Specs

⚙️ Welder Type: Capacitive Discharge (CD)

🌡 Sensor Applications: Thermocouples & RTDs

📐 Additional Application: Strain Gauge Attachment

⚡ Weld Energy: Controllable Output

🔩 Stud Capacity: Up to #10 Studs

📌 Pin Capacity: Up to #10 Pins

🧵 Wire Capacity: Up to #12 Gauge Wire Pairs

🔌 Power: 120 VAC • 60 Hz

📐 Dimensions: 11.5" W × 8.5" D × 3.5" H

🧰 Configuration: Compact Bench-Top Welder

──────────────────────────

Related Items & Spare Parts

🧵 Thermocouple-grade wire

🟡 Type K thermocouple wire

⚫ Type J thermocouple wire

🟢 Type R and Type S thermocouple materials

🌡 RTD sensors and components

🧰 Welding electrodes and attachment accessories

⚖️ Calibration and certification services

Explore the related items at the bottom of this page for compatible accessories, replacement parts, and supplies.

──────────────────────────

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

Quantity

Notable Features

Back

The HotSpot PLUS Capacitive Discharge Welder is designed for precision attachment and fabrication of thermocouples, RTDs, strain gauges, studs, pins, and wire pairs. Its controllable weld-energy output allows the operator to match weld power to the application, including sensitive strain-gauge attachment work.

The compact bench-top unit operates from standard 120 VAC, 60 Hz power and can weld components ranging from fine temperature-sensor materials up to #10 studs, #10 pins, and #12 gauge wire pairs.

──────────────────────────

Ideal Applications

🌡 Thermocouple junction fabrication

🌡 Surface thermocouple attachment

🔬 RTD sensor attachment

📐 Strain gauge applications

🔩 Stud and pin welding

🧵 Wire-pair welding

🧪 Laboratory and R&D work

🏭 Production and maintenance departments

Back

Part Number DCCHEA006
Size: 3.5" High 8.5" Deep 11.5" Wide (less handle)
Weight: 18 Pounds
Stored Weld Energy: 5 to 525 Watt seconds
Weld Capability: Welds up to #10 studs #10 pins and #12 gauge wire pairs
Cycle Time: Charging time at maximum energy setting is less than 10 seconds
Controls: Provides energy adjustment control 2 position energy range switch on/off ac power switch and LED Displays to indicate charging and energy storage status
Power: Uses 120 VAC 60 Hz line power (220 VAC 50 Hz optional) Circuit protected by 1.5 Amp line breaker

Back

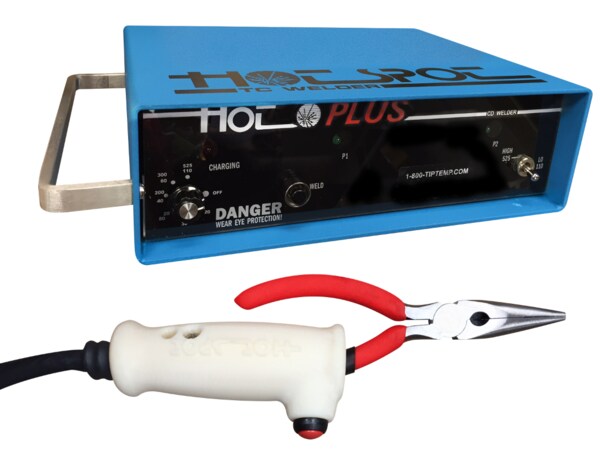

Hot Spot Plus Welder
Eye Shielding Protective Goggles
Carbon Block
Grounding Magnet
Instruction Booklet.
Attachment Cable with Handheld Control Assembly & Pliers
Expert Technical Support

Back

Compliance & Risk Mitigation

⚡ Adjustable energy supports controlled welding

🌡 Proper attachment supports sensor performance

🎯 Controlled output helps limit excess weld energy

🧰 Correct accessories support repeatable setup

👁️ Appropriate PPE protects the operator

🔌 Verify electrical requirements before operation

🛠 Routine inspection supports reliable operation

Select weld energy, electrodes, accessories, and attachment methods appropriate for the material and application. Operators should follow the manufacturer's instructions and applicable workplace procedures for electrical, eye, burn, and welding hazards. When fabricating temperature sensors, the completed sensor and measurement system should be verified or calibrated as required by the application.

──────────────────────────

Back

Quick Action

The HotSpot PLUS is light and portable so you can move it right to where you need to make welds, fixture hardware, and attach thermocouples. The actual welding time is a fraction of a second and the short recycle interval, even at full power, will allow you to make 6 or more welds a minute, even quicker for ordinary gauge thermocouples.

Easy-To-Use

Anyone can quickly become proficient in the use of the HotSpot PLUS. While sophisticated internally, the HotSpot PLUS provides the operator with a firing button and simple on/off and energy level adjustment. The dual capability of pin and thermocouple welding makes the HotSpot PLUS particularly attractive for applications currently employing stud welders and thermocouple attachment units.

Flexible

The HotSpot PLUS welder is a dual range high-energy unit that has the versatility to provide fine control as well as the high power capability needed for heavier welds. Front panel indicators and controls allow the operator to easily monitor the status, set the energy level, and initiate a weld cycle. A remote firing switch is also provided on the attachment handle.

The HotSpot PLUS operates only from AC power. A battery-powered version of the unit is not offered but it can be driven by a low power battery to AC converter. It weighs only 18 lbs. and it;s compact design makes it a very portable package.
