Type T Thermocouple (Copper +  / Constantan – )  T is a narrow range and high accuracy thermocouple wire. It’s popular with scientific and medical temperature monitoring installations. It's accuracy ±1°C / 2°F for standard limits and ±0.5°C / 1°F for special limits and has a temperature range -330°F ~ 662°F (-200°C ~ 350°C) depending on wire gauge size.  Be careful of the Copper leg because its alloy will oxidize.


Note: RED is always Negative "–" in the thermocouple world!

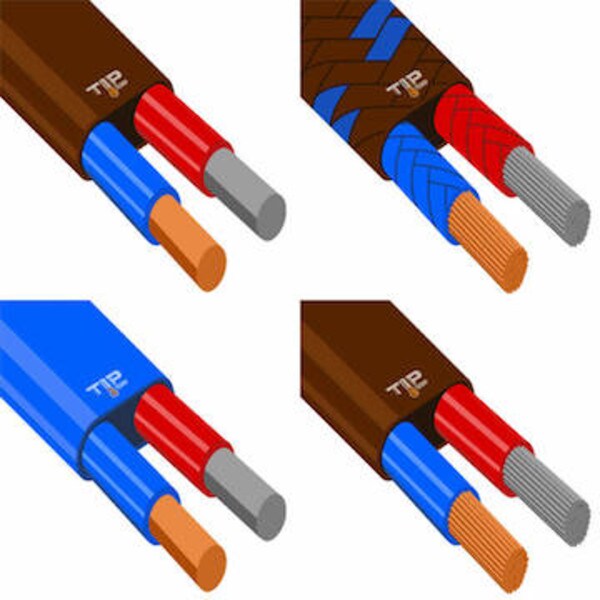

Thermocouple GRADE Wire is recommended for measuring process temperature. T Thermocouple Grade wire always has a BROWN jacket ( Teflon or Fiberglass ) with Blue + and Red – conductors. This wire is available in standard limits ±1°C or Special Limits ±0.5°C.  Most wire in this section is Standard. Please contact a Thermal Advisor to request Special Limits

Thermocouple EXTENSION Wire is used to connect Thermocouples to Instrumentation.  It's accuracy is guaranteed over a limited temperature range. ( -40 ~ 221°F / -40 ~ 105°C )  Type  T Extension Grade Wire always has a BLUE PVC jacket with
Blue+ and Red – conductors

Notable Features

Back

Details

Listed below is our selection of  Type T thermocouple Wire. If you need assistance choosing the proper item for your application, don't hesitate to reach out via 1-800-TIP-TEMP (847-8367) and speak with a TIPTEMP Thermal Advisor or Click on " ADD TO QUOTE"  ( above ) and tell us your requirements.

Make Sure To Look Over Our Thermocouple Wire  Part Numbering Document. CLICK HERE
