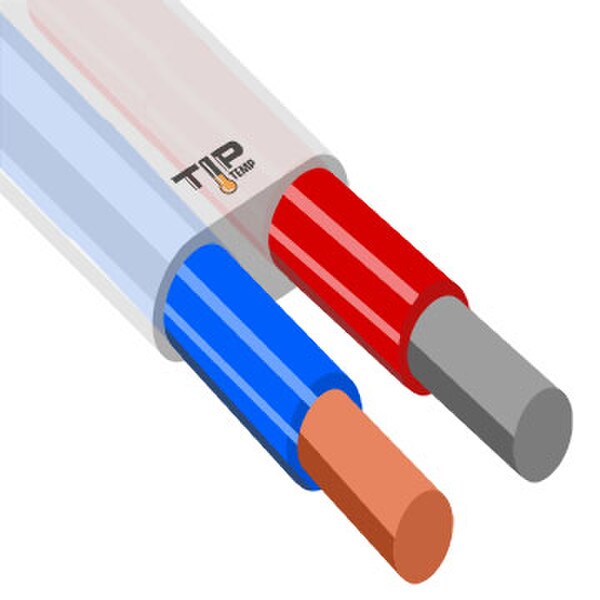

Type T Thermocouple Wire, 36 awg
IWT-36-TT-SLE ( PFA )
Insulated thermocouple grade wire, meets all standards set by NIST. Used to measure temperature. "T" calibration, 36 gauge with color coded PFA extruded over each bare wire. Superior abrasion and moisture resistance. Same as TEF but higher temperature rating. Insulation temperature range: -450 to 500 F; -267 to 260 C
Insulated thermocouple grade wire, meets all standards set by NIST. Used to measure temperature. "T" calibration, 36 gauge with color coded PFA extruded over each bare wire. Superior abrasion and moisture resistance. Same as TEF but higher temperature rating. Insulation temperature range: -450 to 500 F; -267 to 260 C
| Temperature Sensing Range: | -450 ~ 500°F (-267 ~ 260°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Sold As: | Feet |
| Thermocouple Type: | Thermocouple |
| Wire Material: | Teflon |
| Wire Gauge: | 36 awg |
| Max Temp: | 500°F (260°C) (insulation rating) |
| Special Limits: | SLE |
- Type T, 36awg Wire, cut to length
- Expert Technical Support
