🔵 Type “T” High Accuracy Thermocouple Grade Wire

Name: TIPWRT050: IWT-20-GG Thermocouple Grade Wire
SKU: TIPWRT050
Price: 0.75 USD
Availability: InStock

(0)No Reviews yet

$0.75

Quantity	Price
50 – 99	$0.75
100 – 249	$0.71
250 – 499	$0.68
500 – 999	$0.64
1000 +	$0.60

SKU: TIPWRT050

Provided: Feet

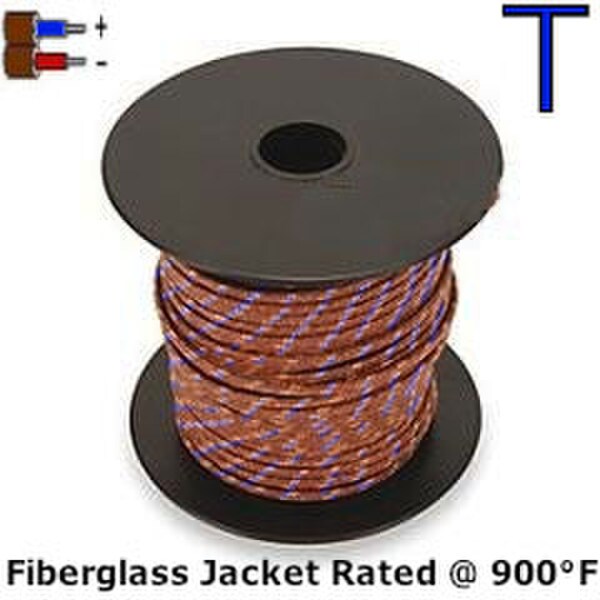

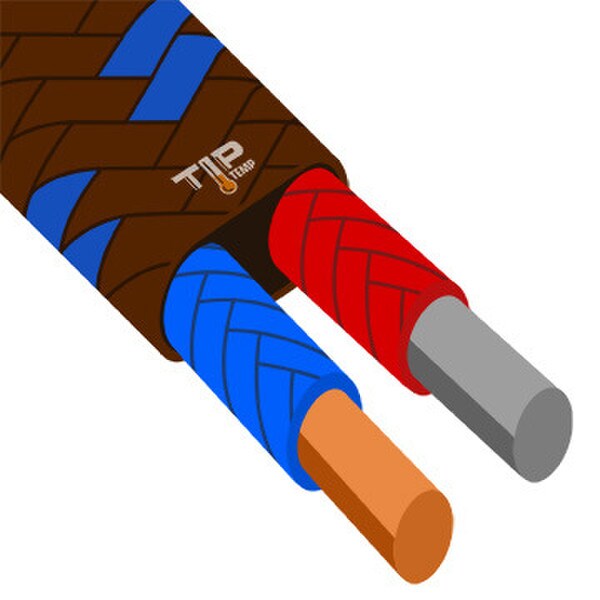

Copper–Constantan Solid Conductor with High-Temperature Fiberglass Insulation

Quick Specs

🧵 Wire Type: Type “T” — Copper (+) / Constantan (–)
📏 Gauge: 20 AWG Solid Conductor
🧪 Insulation: Fiberglass jacket
🔥 Temperature Rating: Up to 900 °F / 482 °C
🎯 Accuracy: ± 0.5 °C / ± 1 °F (per ASTM standard)
📡 Max Signal Distance: 337 ft without amplification
⚙️ Polarity: (+) Blue / (–) Red
🔩 Construction: Durable solid-core high-temperature wire
🏷️ TIPTEMP Part Number: IWT-24-GG

📦 Browse the related products below to find compatible plugs, connectors, and wire welders that integrate seamlessly with this thermocouple wire.

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

IN STOCK

Current Stock: 140

Quantity

Notable Features

Back

Key Features

✅ Type “T” thermocouple wire for precision temperature measurement
✅ High-accuracy performance within ± 0.5 °C per ASTM E230
✅ Fiberglass insulation rated for continuous 900 °F operation
✅ Reliable signal transmission up to 337 ft without amplification
✅ Color-coded to ANSI Type “T” standard (Blue / Red)
✅ Ideal for laboratory, field calibration, and custom probe fabrication

Below is a list of "T" Thermocouple Grade Wire in various configurations. Please contact us for price and availability.

T		+ Copper - Constantan		Positive = Blue Negative = Red
Wire Insulation	Max Temp	Gauge	Wire Type	Signal Dist.	Product Code
GLASS BRAID on each conductor GLASS BRAID overall	900 F 482 C	20	solid	337 ft	IWT-20-GG
		20	stranded	337 ft	IWT-20s-GG
		24	solid	134 ft	IWT-24-GG
		24	stranded	134 ft	IWT-24s-GG
		28	solid	52 ft	IWT-28-GG
		30	solid	34 ft	IWT-30-GG
STAINLESS STEEL OVERBRAID		20	solid	337 ft	IWT-20-GG-SSOB
		20	stranded	337 ft	IWT-20s-GG-SSOB
		24	solid	134 ft	IWT-24-GG-SSOB
		24	stranded	134 ft	IWT-24s-GG-SSOB
TEFLON on each conductor TEFLON overall	500 F 260 C	20	solid	337 ft	IWT-20-TT
		20	stranded	337 ft	IWT-20s-TT
		22	stranded	220 ft	IWT-22s-TT
		24	stranded	134 ft	IWT-24s-TT
		24	solid	134 ft	IWT-24-TT
		30	solid	34 ft	IWT-30-TT
		36	solid	8 ft	IWT-36-TT
		40	solid	9 in	IWT-40-TT
STAINLESS STEEL OVERBRAID		20	solid	337 ft	IWT-20-TT-SSOB
		20	stranded	337 ft	IWT-20s-TT-SSOB
		24	solid	134 ft	IWT-24-TT-SSOB
		24	stranded	134 ft	IWT-24s-TT-SSOB

*"Signal Dist." relates to how far thermocouple signal travels without amplification.
