🔵 “T” Thermocouple Extension Wire SLE
Extension thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics. This low cost thermocouple wire is recommended for extending the distance of your typical thermocouple signal.
Key Features
✅ Type T thermocouple extension wire for precise low-temperature sensing
✅ Special Limits of Error accuracy — ± 1 °F (± 0.5 °C)
✅ Durable polyvinyl insulation rated to 220 °F (105 °C)
✅ Flexible, easy to route, and ideal for lab or production use
✅ Color-coded to ANSI Type T standard (Blue / Red)
✅ Expert technical support available for wiring configuration

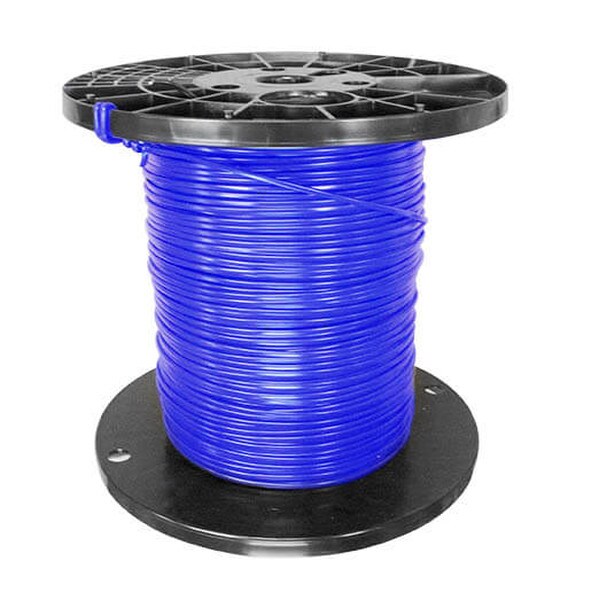

- Part Number XWT-24-PP-SLE / TIPWRT024
- Type "T" Wire Polyvinyl Jacket 24 Ga. Solid
- Polyvinyl is rated at max 212°F / 100°C

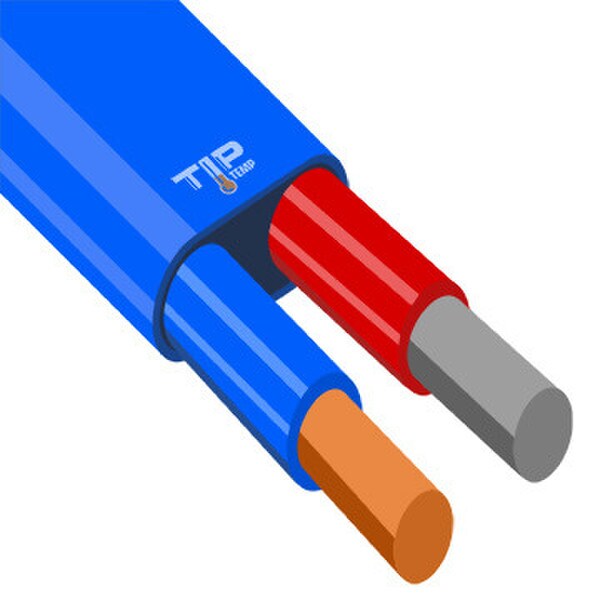

- (Blue) Copper + / (Red) Constantan
- Type "T" extension grade wire Solid 24 Ga. - cut to your required length
- Expert Technical Support
Max Distance Signal will travel is 134 Ft. without amplification
Thermocouple Extension wire is used in various applications and environments. Take the time to Speak with a TIPTEMP Thermal Advisor.
