“T” Thermocouple Grade Wire 30 Ga. Teflon
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics. This reliable thermocouple wire is recommended for use in industrial, research, pharmaceutical, or aerospace applications to name a few. Also ideal for making your own thermocouples.
Below is a list of "T" Thermocouple Grade Wire in various configurations. Please contact us for price and availability.
Below is a list of "T" Thermocouple Grade Wire in various configurations. Please contact us for price and availability.
| T | + Copper - Constantan | Positive = Blue Negative = Red | ||
| Wire Insulation | Max Temp | Gauge | Wire Type | Product Code |
GLASS BRAID GLASS BRAID | 900 F | 20 | solid | IWT-20-GG |
| 20 | stranded | IWT-20s-GG | ||
| 24 | solid | IWT-24-GG | ||
| 24 | stranded | IWT-24s-GG | ||
| 28 | solid | IWT-28-GG | ||
| 30 | solid | IWT-30-GG | ||
STAINLESS STEEL | 20 | solid | IWT-20-GG-SSOB | |
| 20 | stranded | IWT-20s-GG-SSOB | ||
| 24 | solid | IWT-24-GG-SSOB | ||
| 24 | stranded | IWT-24s-GG-SSOB | ||
TEFLON FEP TEFLON | 400 F | 20 | solid | IWT-20-TT |
| 20 | stranded | IWT-20s-TT | ||
| 22 | stranded | IWT-22s-TT | ||
| 24 | stranded | IWT-24s-TT | ||
| 24 | solid | IWT-24-TT | ||
| 30 | solid | IWT-30-TT | ||
| 36 | solid | IWT-36-TT | ||
| 40 | solid | IWT-40-TT | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | IWT-20-TT-SSOB | |
| 20 | stranded | IWT-20s-TT-SSOB | ||
| 24 | solid | IWT-24-TT-SSOB | ||
| 24 | stranded | IWT-24s-TT-SSOB | ||
- Part Number IWT-30-TT / TIPWRT011
- Type "T" Wire Teflon Jacket 30 Ga. Solid
- Teflon is rated at max 400°F / 206°C
- Accuracy ±.5°C / 1°F per ASTM standards.
- Max Distance Signal will travel is 134 Ft. without amplification.

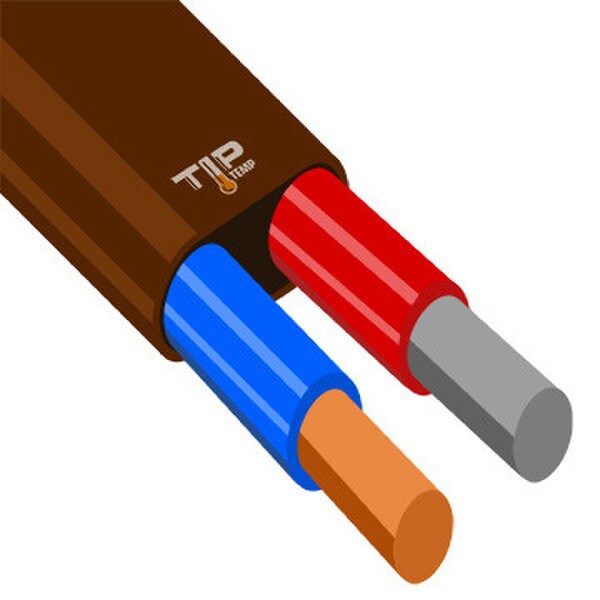

- (Blue ) Copper + / (Red) Constantan
- Type "T" thermocouple grade wire Solid 30 Ga. - cut to your required length
- Expert Technical Support
