4 Channel Thermocouple Logger

(0)No Reviews yet
Provided: Each
-148° ~ 3092°F (-100° ~ 1700°C)
Operates on Batteries or AC Adaptor
Accepts Thermocouple J-K-T-R-S and RTD pt100
Logs Data to SD Memory Card ( 2GB )

Notable Features

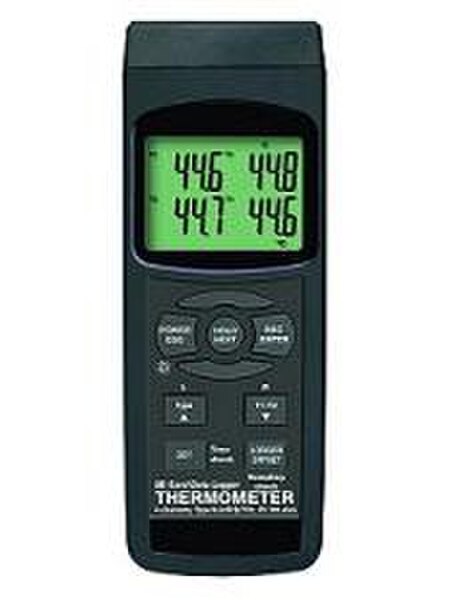

The GENREC004 is a general-purpose handheld instrument that can measure up to four channels of temperature with 0.4% accuracy using either of two kinds of optional accessories: thermocouples or Pt 100 ohm probes (resistance-temperature detectors, or RTDs). RTDs are slowly replacing thermocouples in many industrial applications below 1100°F (600°C) due to their superior accuracy and repeatability. When used as inputs to the GENREC004, Pt 100 ohm probes can measure and display temperatures from -328° to 1562°F (-200° to 850°C). The data logs are stored on the card as files with the .xls extension, which can be opened by Microsoft’s Excel application.
Type of Sensor: Accepts Thermocouple & RTD Inputs
Temperature Sensing Range: -148° ~ 3092°F (-100° ~ 1700°C)
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Resolution: 0.1°
Temperature Scale: °F or °C
Min/Max Memory: Yes
Dimensions: 6.97 x 2.68 x 1.77 in. (177 x 68 x 45mm)
Weight: 1.13 lb. (515g)
Calibration Available: Yes (purchased separately)
Battery Life: Depends on Sampling Rate
Battery Backup: Yes - Must Purchase Option Power Supply
Number of Sensors: 4 Inputs
Data Points: Limited to SD Card (Max 16G)
Exportable Data: Yes
Recording Rate: 1 second to 1 hour
Display: BackLit LCD
Requires Software: NO
Network Connectivity: USB
WIFI Network Compatibility: N/A
  • 4 Channel Thermomete Recorder
  • Soft carrying case
  • (2) Two type "K" beaded wire thermocouple probes - Max Temp 500°F / 260C
  • 2 GB SD memory card
  • User's manual and 1 year warranty
  • Expert Technical Support
  • Power Consumption:
  • 8.5 mADC (normal operation, with backlight off and SD card not saving data)
  • 30 mADC with backlight off and card saving data
  • 44 mADC with backlight on and card saving data
