🌡Low Cost Type "K" Thermocouple

(0)No Reviews yet
$37.90
QuantityPrice
1 – 9$37.90
10 – 24$36.01
25 – 49$34.11
50 – 74$32.22
75 – 99$31.27
100 +$30.32
SKU: TIPTCK159
Provided: Each

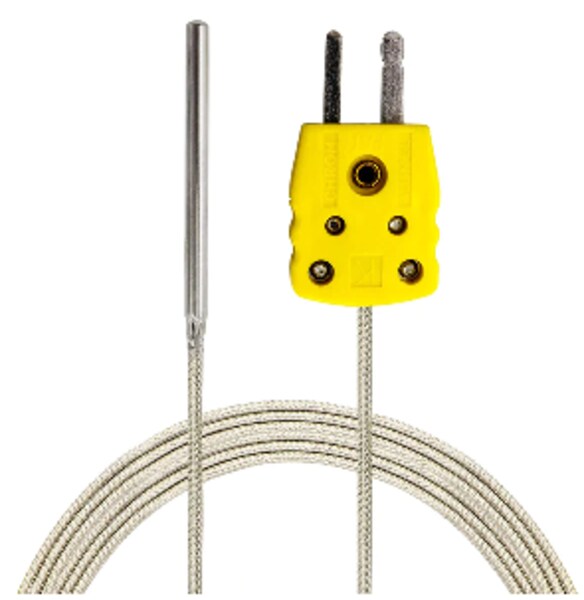

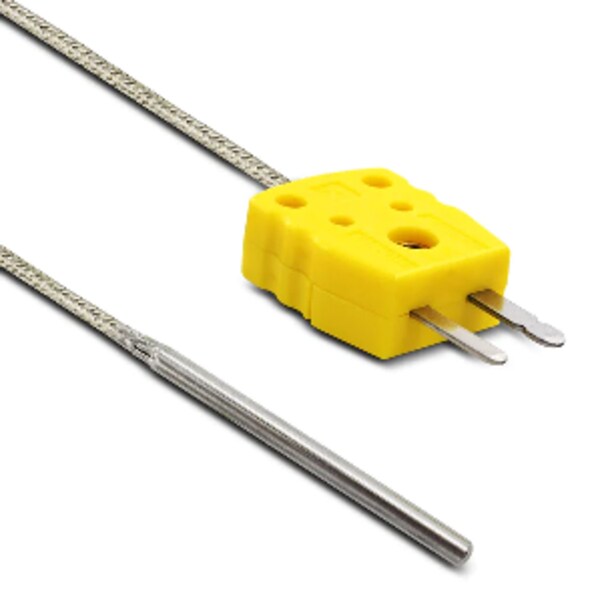

Low-Cost Type “K” Thermocouple

Reliable, fast-response stainless probe for general-purpose sensing.

Quick Specs

🌡 Temperature Range: Up to 900°F / 482°C
🎯 Accuracy: ±4°F (±2°C) typical
🔌 Connector: Mini Plug Attached
📏 Sheath Length: 1.5 in | Ø 0.118 in
🧱 Sheath Material: Stainless Steel
⚙️ Junction Type: Grounded (Fast Response)
🧵 Lead Wire: 36 in SSOB Fiberglass 24 Ga
🔥 Insulation Rating: Up to 900°F (482°C)

Key Features

✅ Economical Type “K” probe for industrial use
✅ Durable stainless sheath with grounded tip
✅ Flexible fiberglass leads resist heat & abrasion
✅ Pre-wired mini plug for quick connection

📦 Browse related probes and accessories below to build your ideal setup.
🛒 Add to Cart Now or 📞 Call 800-TIP-TEMP for expert guidance.

IN STOCK

Current Stock: 2

Notable Features

Back

Details

TC15-K-SS-18-G-1.5-SSOB/GG/24-36-3
Type K thermocouple, 1/8 diameter, SS Tube, 1.5" length with 36" SSOB/fiberglass/24ga. leads and a mini connector attached.

Back

Specs

Temperature Sensing Range: Max Temp 900ºF / 482ºC
Temperature Accuracy: +/- 4°F (+/- 2°C) typical
Thermocouple Type: Thermocouple
Sheath Material: Stainless Steel
Sheath Diameter: 0.125
Sheath Length: 1.5"
Transition Diameter: N/A
Transition Length: N/A
Wire Material: SSOB Fiberglass
Wire Gauge: 24 Ga.
Wire Length: 36"
Plug Size: Mini Plug Attached
Max Temp: 900F/482C
Special Limits: NO
Number of Measuring Points: One
