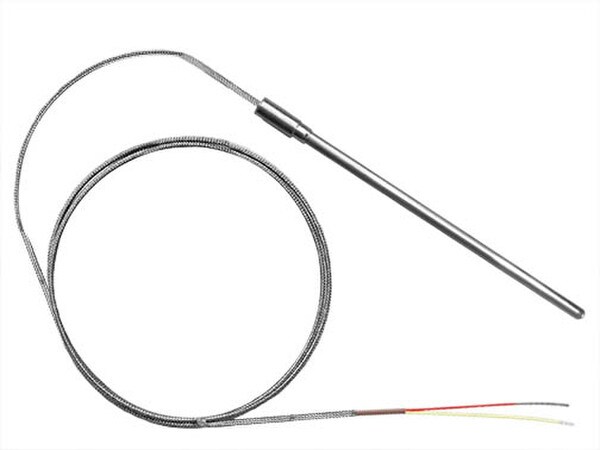

Type “K" Wide Range Thermocouple

(0)No Reviews yet
$68.00
QuantityPrice
SKU: TIPTCK001P23
Provided: Each
-328°F ~ 2000°F (-200°C ~ 1093°C)

TC16-K-SS-14-G-8-24-36-SSOB-No Spring
Transition Style, "K" (Chromel+/Alumel), SS Sheath,
1/4" dia., Grounded Junction, 8" Sheath Length, 36" Lead Wire,
24 ga. SS Overbraid, stripped leads.

Custom designs and/or changes to this product are available.
View Our PDF Catalog Page

Notable Features

Back
TIPTCK001P23
TC16-K-SS-14-G-8-24-36-SSOB-No Spring
Transition Style, "K" Chromel+/Alumel-stainless steel material, 1/4" od, Grounded Junction, 8" sheath length with 36" 24 gauge SSOB wire, stripped leads
Back
Thermocouple Type: Thermocouple
Sheath Material: Stainless Steel
Sheath Diameter: 0.250
Sheath Length: 8 Inches
Transition Diameter: 0.375"
Transition Length: 1 inch
Wire Material: SSOB Fiberglass
Wire Gauge: 24
Wire Length: 36 Inches
Max Temp: -328°F ~ 2000°F (-200°C ~ 1093°C)
Time Constant: 15 seconds or greater
Response Time: 3 seconds or greater
