8 Channel Logger with 5" Touchscreen
Your all-in-one solution can store up to 5,000,000 readings with 1 GB of internal memory, which can be download to a USB for further analysis. Users can view all 8 channels simultaneously without the need for a PC or software.
The handheld data logger provides customizable solutions including channel configurations, engineering units and alarms for benchmark or undesirable readings.

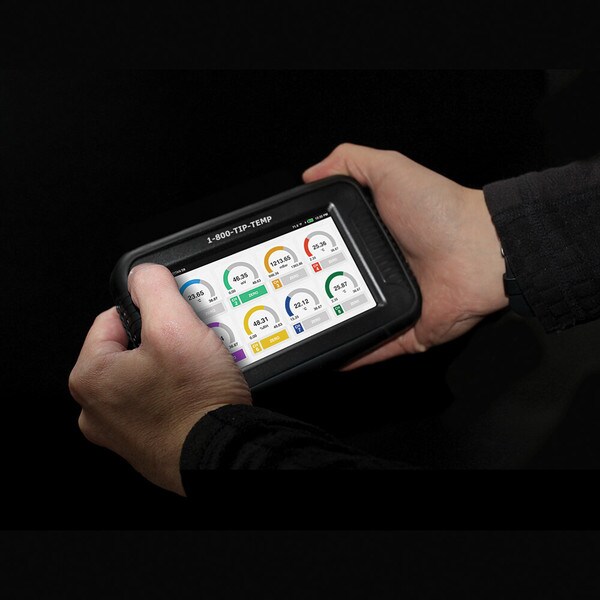

The 8 Channel Data Logger is a portable, multi-use industrial data logger with a user-friendly touchscreen interface. This versatile logger measures and records temperature, current, voltage and pulse simultaneously and displays data in real-time. It is compatible for use with many thermocouple, RTD or thermistor probes as well as a number of voltage output sensors, current switches, transmitters and transducers.
Versatility makes it the perfect solution for industrial engineers, quality assurance professionals, compliance officers or automotive technicians. The Titan S8’s touchscreen user interface allows for easy set up and configuration.
Unlike other data loggers, this 8 Channel Data Logger delivers an all-in-one data collection and monitoring solution that does not require a PC or any downloaded software for operation. Rechargeable 3.7 V Lithium Ion Battery Pack
The handheld data logger provides customizable solutions including channel configurations, engineering units and alarms for benchmark or undesirable readings.
The 8 Channel Data Logger is a portable, multi-use industrial data logger with a user-friendly touchscreen interface. This versatile logger measures and records temperature, current, voltage and pulse simultaneously and displays data in real-time. It is compatible for use with many thermocouple, RTD or thermistor probes as well as a number of voltage output sensors, current switches, transmitters and transducers.
Versatility makes it the perfect solution for industrial engineers, quality assurance professionals, compliance officers or automotive technicians. The Titan S8’s touchscreen user interface allows for easy set up and configuration.
Unlike other data loggers, this 8 Channel Data Logger delivers an all-in-one data collection and monitoring solution that does not require a PC or any downloaded software for operation. Rechargeable 3.7 V Lithium Ion Battery Pack
| Type of Sensor: | Thermistor, RTD, or Thermocouple |
| Temperature Sensing Range: | -454F to 2498F (-270C to 1370C) (Probe Dependant) |
| Operating Temperature Range: | 0 °C to +50 °C (32 °F to +122 °F), 0 %RH to 95 %RH non-condensing |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Temperature Resolution: | 0.01° |
| Temperature Scale: | °F or °C |
| Dimensions: | 6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x35.8 mm) |
| Weight: | 1.3 lbs (20.8 oz) |
| Calibration Available: | Yes (included) |
| Battery Life: | 10 hours continuous use, 100 hours Stand-by mode (Typical) |
| IP Rating: | IP20 |
| Number of Sensors: | Up to 8 Inputs Available |
| Data Points: | 1,000,000 or 5,000,000 |
| Exportable Data: | Yes, Requires Additional USB Flash Drive |
| Recording Rate: | User Programmable, 1 Second to 24 Hour intervals |
| Display: | LCD |
| Requires Software: | NO, Pre-Installed into Titan SE |
| Display Dimensions: | 5 inch touch screen |
- (1) 8-Channel Data Logger with 5″ Touchscreen Interface
- (1) Rechargeable 3.7 V Lithium Ion Battery Pack
- (1) USB Power Cable
- (1) USB Flash Drive 400MB
- (1) Hard-Shell Carrying Case
- (1) Calibration, in the device's interface
- Expert Technical Support
Device Orientation
The Titan S8 display can rotate 180 degrees depending on the desired orientation of the device.
The Titan S8 display can rotate 180 degrees depending on the desired orientation of the device.
- Desktop Orientation:For handheld and tabletop use, the inputs will be on the top. Note port number as it relates to device orientation.

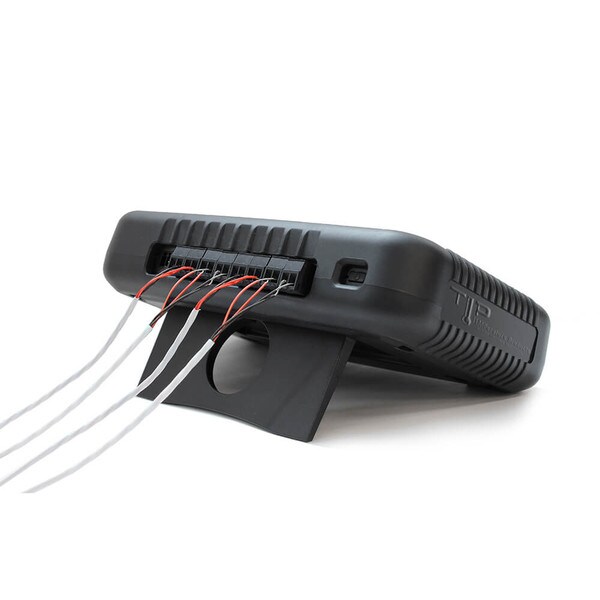

- Tabletop Orientation: The Titan S8 features a built in kickstand on the back of the device for use on flat surfaces.
- Ports 1 thru 8 are sensor input channels (Temperature, Current or Voltage)
- Port 9 serves as an alarm output
- Port 10 serves as a ground for the device
- Frequency or Pulse Counter can only be used on port 1
- 3-Wire and 4-Wire PT100 RTD Sensors use ports 1-2, 3-4, 5-6, or 7-8
- 2-Wire PT100 RTD Sensors can be used on ports 1-8

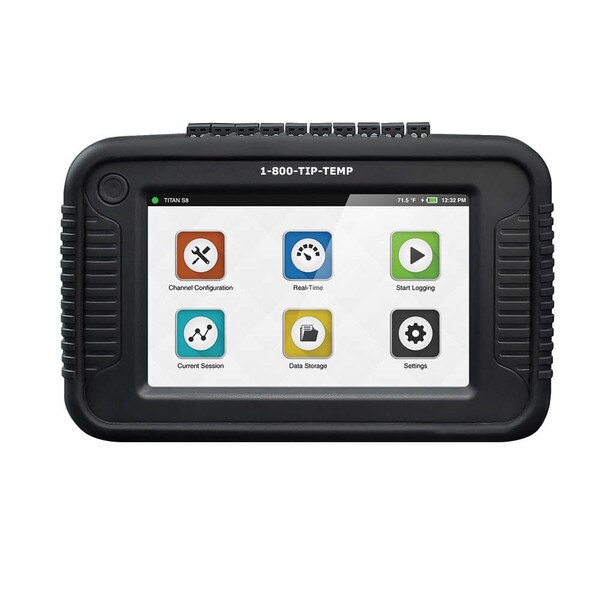

- Channel Configuration: Configure parameters and options for each channel.
- Real-Time: Quickly view Real-Time data for all active channels.
- Start Logging: Start logging using current settings. (Stop logging if device is actively logging.)

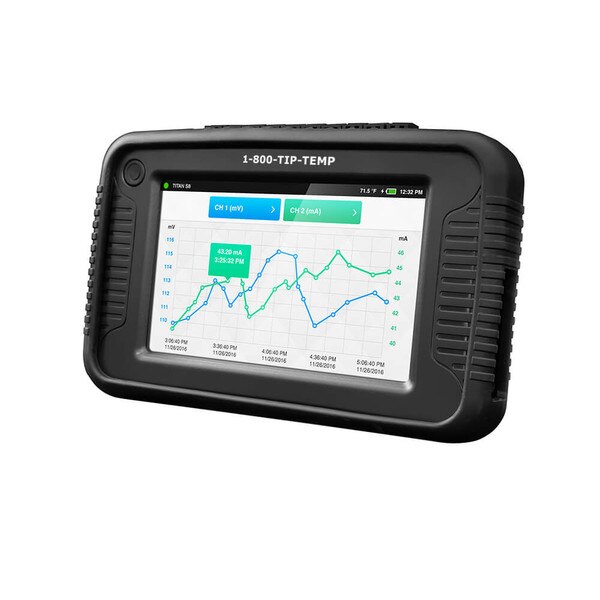

- Current Session: View data from the current logging session as graph, tabular or real-time.
- Data Storage: View, Copy, Delete and Add notes to logged sessions.
- System: Access device preferences and options.
- Ethernet is supported using an approved USB to Ethernet adapter. Plug in the Ethernet adapter prior to powering up Titan S8.
- Wi-Fi is supported using an approved USB Wi-Fi dongle. Plug in the USB Wi-Fi Dongle prior to powering up Titan S8.
- Setup for access over the web or through a Virtual Network Computing (VNC) connection. To configure access over the web, follow the steps in this section.
- View Current Conditions and Configure your MATREC155 via any Web Browser.
