4 Channel Temperature Recorder & Sensors

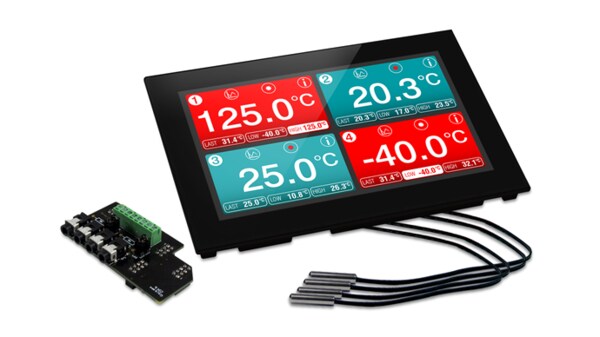

The LASREC045 is a panel-mountable, four-channel temperature data logger based on using new customized software PanelPilotACE program. The product includes a 7” panel mounted display module with captive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes. The user interface comprises an advanced logging application which shows real-time readings for all four temperature channels, live trend graphs and access to a suite of real-time data analysis information. The logger can store up to 100,000 readings per channel at sample rates from 5 seconds to 12 hours.
| Type of Sensor: | Thermistor |
| Temperature Sensing Range: | -40°F ~ 257°F (-40°C ~ 125°C) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Resolution: | 0.01° |
| Temperature Scale: | °F and °C |
| Sensor Wire Length: | 3 ft |
| Dimensions: | 7.3”x 4.3”x 0.8” |
| Calibration Available: | Field Calibratable |
| Number of Sensors: | 4 |
| Exportable Data: | Yes |
| Recording Rate: | 15 seconds - 12 hours |
| Display: | LCD |
| Software Type: | Onboard |
| Network Connectivity: | USB |
| Offset: | Yes |
- LASREC045: 7” PanelPilotACE display with mounting kit
- Four-channel thermistor add-on board
- 4 x 1m thermistor probe with 3.5mm plug
- Mini USB cable
- Expert Technical Support

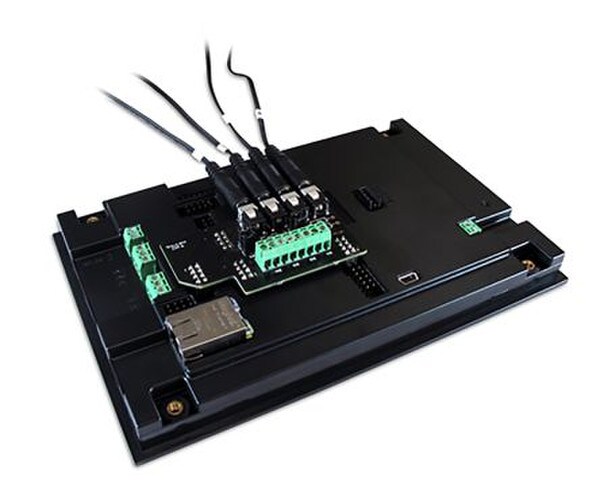

Software Device Utility Data download, device updates and programming of the module is completed using the free Device Utility software available from: https://www.tiptemp.com/Software/. Data is downloaded in comma separated variable format which can be imported into spreadsheet packages for graphing and further analysis. Retrieving Logged Data The LASREC045 is configured as a USB slave. To retrieve logged data, connect a PC or laptop to the USB connector on the rear of the unit and use the Device Utility software to select and extract logs as .txt files.
