📊 4-Channel Recording Thermometer

(0)No Reviews yet
Log in to see price
SKU: TIPMTR002

Multi-sensor temperature monitoring with large touchscreen interface

──────────────────────────

Quick Specs

🌡 Temperature Range: –40°F to 257°F (–40°C to 125°C)
🎯 Accuracy: ±2°F (±1°C) typical
🔍 Resolution: 0.01°
🧪 Sensor : (4) 36" Thermistor sensors - can be extended
🧮 Number of Sensors: 4
📺 Display Type: LCD touchscreen
📐 Display Size: 7" diagonal
📏 Display Area: 6" L × 3.5" H

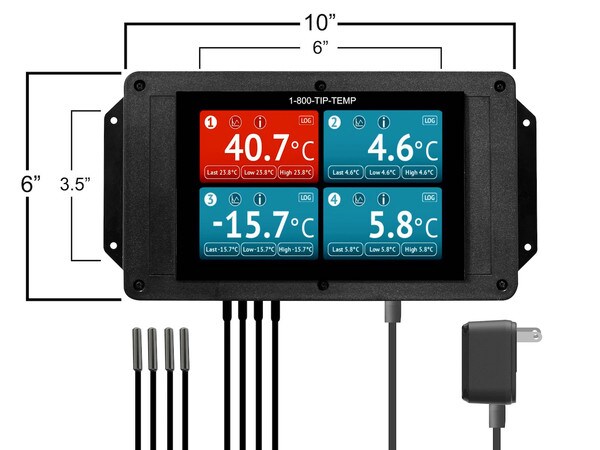

📦 Enclosure Dimensions: 10" L × 6" H × 3.125" D
⚖️ Weight: 2.2 lbs
🔌 Power: 5V USB AC power adapter
🔋 Battery Backup: No

──────────────────────────

Custom Configuration Notice

🚧 This system is configurable.
Sensor types, cable lengths, mounting options, logging parameters, and display preferences can be customized to your application.

Request a quote to customize this system to your specifications.

──────────────────────────

📦 Browse the related products below to explore compatible probes, mounting hardware, and accessories that integrate seamlessly with this system.


🛒 Request a Quote or 📞 Call 1-800-TIP-TEMP (847-8367) to speak with a TIPTEMP Thermal Advisor.

Notable Features

Back

✅ Monitors and records temperature from four independent points
✅ Large 7" touchscreen for fast setup and clear visibility
✅ Wall-mount enclosure for fixed installations
✅ High-resolution logging (0.01°) for trend analysis
✅ Ideal for laboratories, process monitoring, storage rooms, and QA environments
✅ Expandable and configurable to meet application-specific needs

──────────────────────────

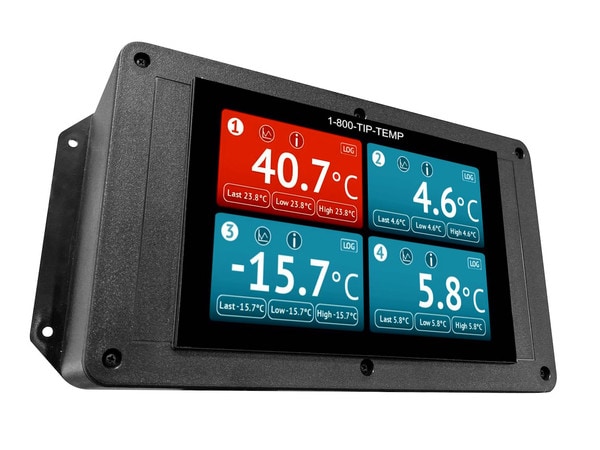

4 Channel Large Display Recording Thermometer

7" Display Module with captive touch screen and 4 temperature probes, wall-mount.

The user interface comprises an advanced logging application which shows real-time readings for all four temperature channels. Easy to program and configure each channel with touch screen interface.

Back
Type of Sensor: Thermistor
Temperature Sensing Range: -40°F ~ 257°F (-40°C ~ 125°C)
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Resolution: 0.01°
Dimensions: 10"L x 6"H x 3.125"D
Weight: 2.2 Lbs
Power: 5V USB AC Power Adapter
Battery Backup: No
Number of Sensors: 4
Display: LCD
Display Dimensions: 6"L x 3.5"H
Back

📦 (1) 7" Large Display Recording Thermometer
📦 (1) Wall-mount enclosure with fittings
📦 (4) 36" temperature sensors
📦 (1) 18" USB cable and power adapter

Back
