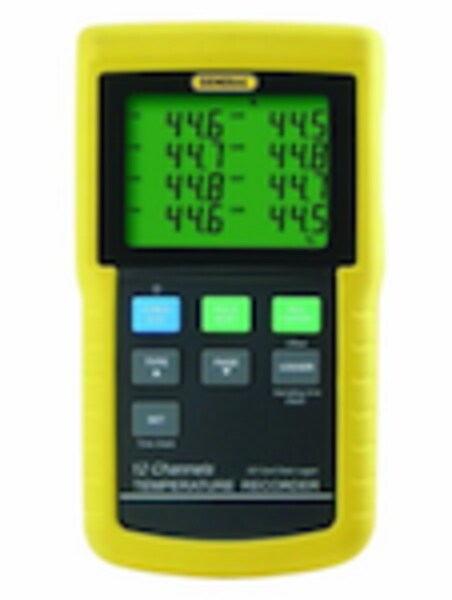

12-Channel Thermocouple Recorder
Accurately Measures 12 Channels of Temperature from -148°F to 3,092°F (-100°C to 1,700°C). Applications include food and chemical processing, PC board burn-in, paper production, HVAC/R (heating, ventilation and air-condition/refrigeration) and power generation. This instrument's unique feature is its patented technique for storing sampled data in Excel format on removable SD memory cards. Measurements can be made automatically at any sampling rate between one second and one hour.
Works with the following Thermocouples:
Works with the following Thermocouples:
- “K” type: -148° to 2372°F (-100° to 1300°C) Most Popular
- “J” type: -148° to 2102°F (-100° to 1150°C)
- “T” type: -148° to 752°F (-100° to 400°C) Most Accurate +/- 1°F/0.5°C
- “E” type: -148° to 1652°F (-100° to 900°C)
- “R” type: 32° to 3092°F (0° to 1700°C) High Temperature
- “S” type: 32° to 2732°F (0° to 1500°C)
| Type of Sensor: | Thermocouple K, J, T, E, S and R |
| Temperature Sensing Range: | -148°~ 3092°F (-100° ~ 1700°C ) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | Yes |
| Dimensions: | 8.86 x 4.92 x 2.52 in. (225 x 125 x 64mm) |
| Weight: | 2.1 lb. (944g) |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | Depends on Sampling Rate |
| Battery Backup: | Yes - Must Purchase Option Power Supply |
| Sampling Rate: | 1 second to 1 hour |
| Special Notes: | Talk with a Thermal Advisor |
| Number of Sensors: | 12 |
| Data Points: | SD Card with 16 GB capacity |
| Exportable Data: | Yes |
| Display: | LCD |
| Requires Software: | NO |
| Software Type: | Exports ASCII Text File, Tab Delimited |
| Network Connectivity: | SD Card |
- 12 Channel Thermocouple Thermometer
- Hard carrying case
- (2) Two Type K Teflon, 36" wire thermocouple probes ( max temp 500°F / 250°C )
- 2 GB SD memory card
- User's manual
- Expert Technical Support
- OPTIONAL POWER SUPPLY GENACC002
