🟡 “K” Profile Thermocouple (20-Point)
✅ Designed for temperature profiling and validation studies
✅ Multiple sensing points for detailed thermal mapping
✅ Fiberglass insulation rated for elevated temperatures
✅ Custom-built to match process and application requirements
✅ Ideal for ovens, furnaces, chambers, and process equipment
✅ Expert support throughout design and fabrication

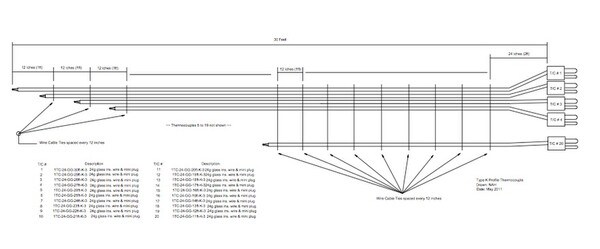

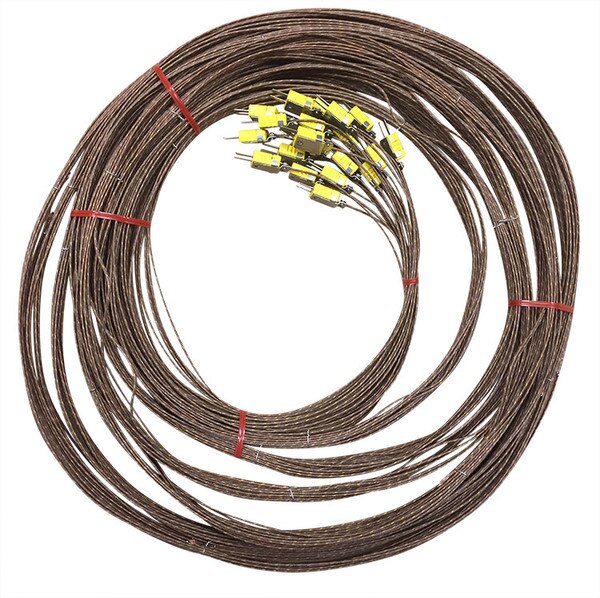

Custom profiling type K thermocouple. Comprising a thirty foot overall length with 20 pcs of type K exposed junction thermocouples made from 24 gauge glass insulated wire, positioned every 12" inches from 30ft, 29Ft, 28Ft to 11ft then a 10ft length back to miniature thermocouple plugs. The thermocouples will be bound together every 12" inches using wire cable ties to form a flexible cable. Max temp 350°C/662°F
Complete this form to customize your sensor
| Temperature Sensing Range: | Max 350°C/662°F |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Thermocouple Type: | Thermocouple |
| Wire Material: | Fiberglass |
| Wire Gauge: | 24 Ga. |
| Wire Length: | 30 Ft / 360 inches |
| Special Limits: | Upon Request |
| Number of Measuring Points: | 20 |
- Custom profiling Type K Thermocouple 20 Sensors
- Expert Technical Support
- Insert respective plugs into Type K thermometer
- Place exposed junctions into monitoring environment
