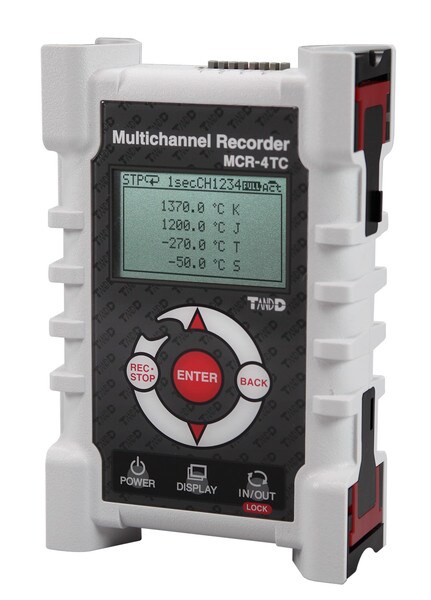

4 Channel Thermocouple Logger

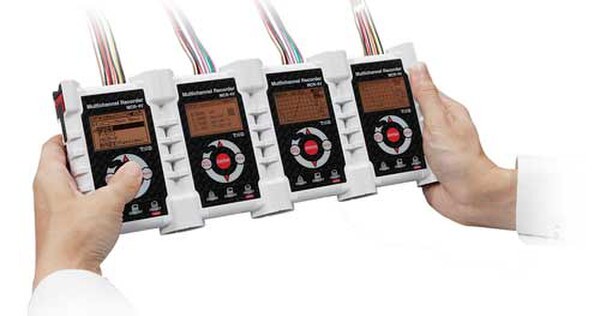

The MCR Series Multichannel Recorders are 4-channel battery operated data loggers. Up to 4 units can be coupled together, making it possible to simultaneously measure and record up to 16 channels. The MCR-4TC is designed to measure a wide range of temperatures using a thermocouple sensor (compatible types: K, J, T, S and R).
- Part Number: TADREC060
- Measurement Channel:
Temperature - Input Impedance:
Approx. 1 MΩ - Measurement Range:
Type K : -270 to 1370 °C
Type J : -210 to 1200 °C
Type T : -270 to 400 °C
Type S : -50 to 1760 °C
Type R : -50 to 1760 °C - Thermocouple Measurement Accuracy:
Type K J T: ±(0.5 °C + 0.3 % reading) [ at -100 °C or above ]
Type S R : ±(1.5 °C + 0.3 % reading) [ at 100 °C or above ] - Cold Junction Compensation Accuracy:
±0.5°C [ in operating environment of 10 to 40 °C ]
±0.8°C [ in other operating environment ]
Auto : According to the range in use - Measurement Resolution:
0.1°C - Dimensions: H 120 mm x W 75 mm x D 32 mm
- Recording Interval:
100 200 500 ms.
1 2 5 10 15 20 30 sec.
1 2 5 10 15 20 30 60 min. - Logging Capacity:
When recording 1 channel : up to 960000 readings/ch
When recording 2 channels : up to 480000 readings/ch
When recording 3 channels : up to 320000 readings/ch
When recording 4 channels : up to 240000 readings/ch - Battery:AA Alkaline Battery x 2 (AA Ni-MH batteries may also be used) USB Power (5 V 250 mA)
- Average Battery Life:
100 ms Recording Interval : 5 days
500 ms Recording Interval : 7 days
1 sec. Recording Interval : 7 days
5 sec. or Longer Recording Interval : 21 days
- Data Logger
- USB Cable ( Provides Power )
- FREE Software
- Card Slot Cover
- Instruction Manual
- Batteries (2) AA Lithium
- Expert Technical Support
