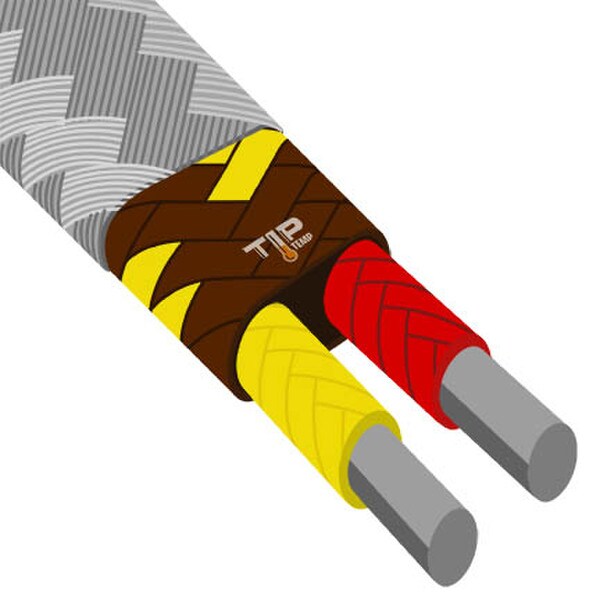

🟡 Type “K” SS Overbraid TC Wire
✅ Stainless steel overbraid adds mechanical protection
✅ Fiberglass insulation rated to 900 °F for industrial use
✅ ANSI color-coded Type K conductors for easy identification
✅ Reliable signal transmission for short-run applications
✅ Ideal for probe builds, repairs, and harsh environments
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
| K | + Chromel - Alumel | Positive = Yellow Negative = Red | |||
| Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
| GLASS BRAID on each conductor GLASS BRAID overall | 900 F 482 C | 20 | solid | 170 ft | IWK-20-GG |
| 20 | stranded | 170 ft | IWK-20s-GG | ||
| 24 | solid | 67 ft | IWK-24-GG | ||
| 24 | stranded | 67 ft | IWK-24s-GG | ||
| 28 | solid | 28 ft | IWK-28-GG | ||
| 30 | solid | 17 ft | IWK-30-GG | ||
| 36 | solid | 4 ft | IWK-36-GG | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-GG-SSOB | |
| 20 | stranded | 170 ft | IWK-20s-GG-SSOB | ||
| 24 | solid | 67 ft | IWK-24-GG-SSOB | ||
| 24 | stranded | 67 ft | IWK-24s-GG-SSOB | ||
| TEFLON on each conductor TEFLON overall | 500 F 260 C | 20 | solid | 170 ft | IWK-20-TT |
| 20 | stranded | 170 ft | IWK-20s-TT | ||
| 22 | stranded | 110 ft | IWK-22s-TT | ||
| 24 | stranded | 67 ft | IWK-24s-TT | ||
| 24 | solid | 67 ft | IWK-24-TT | ||
| 30 | solid | 17 ft | IWK-30-TT | ||
| 36 | solid | 4 ft | IWK-36-TT | ||
| 40 | solid | 7 in | IWK-40-TT | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-TT-SSOB | |
| 20 | stranded | 170 ft | IWK-20s-TT-SSOB | ||
| 24 | solid | 67 ft | IWK-24-TT-SSOB | ||
| 24 | stranded | 67 ft | IWK-24s-TT-SSOB | ||
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
- Part Number IWK-24-GG-SSOB / TIPWRK015
- Type "K" Wire Fiberglass Jacket 24 Ga. Solid Stainless Steel Overbraid
- Fiberglass is rated at max 900°F / 482°C
- Accuracy ±2°C / 4°F per ASTM standards.
- Max Distance Signal will travel is 67 Ft. without amplification.
- (Yellow ) Chromel + / (Red) Alumel
- Type "K" thermocouple grade wire Solid 24 Ga. Fiberglass insulated with SSOB - cut to your required length
- Expert Technical Support
Fiberglass is rated at a maximum of 900°F / 482°C. Above this temperature, It will fray and fall apart. SSOB is used to hold the insulation together.
