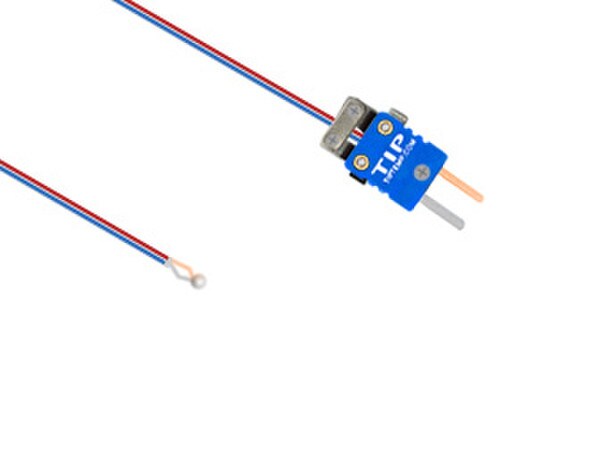

High Accuracy Fast Response "T" Thermocouple
Details
1TC-36-TT-72-T-3CC
Single type T (+ copper / - constantan) wire thermocouples
Wire termination: Miniature plug with cable clamp fitted
Single type T (+ copper / - constantan) wire thermocouples
Wire termination: Miniature plug with cable clamp fitted
Specs
| Temperature Sensing Range: | -328 to 400°F (-200 to 204°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Thermocouple Type: | Thermocouple |
| Wire Material: | Teflon |
| Wire Gauge: | 36 |
| Wire Length: | 72" |
| Plug Size: | Miniature |
| Max Temp: | 400°F (204°C) |
| Response Time: | 0.025 sec. |
| Special Limits: | YES |
