Thermocouple Input USB Temp Logger

(0)No Reviews yet
1 – 9$103.49
10 – 24$94.75
25 – 49$89.76
50 – 99$84.78
100 +$79.79
Provided: Each
–328°F ~ 2272°F (–200°C ~ 1245°C)

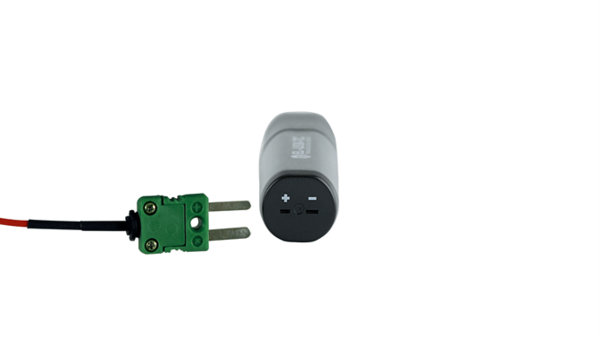

Supports Type J, K , T Thermocouple Sensors

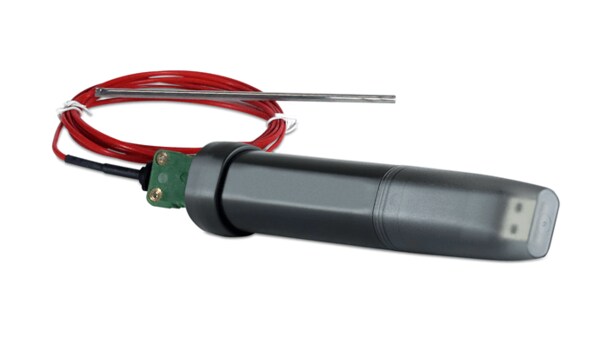

Logger Includes one General Purpose "K" Thermocouple Sensor with Limited Sensing Range. Max Temp 110°C / 230°F
Includes 1/2" AA Battery / Memory: 32000 readings


Current Stock: 3

Notable Features

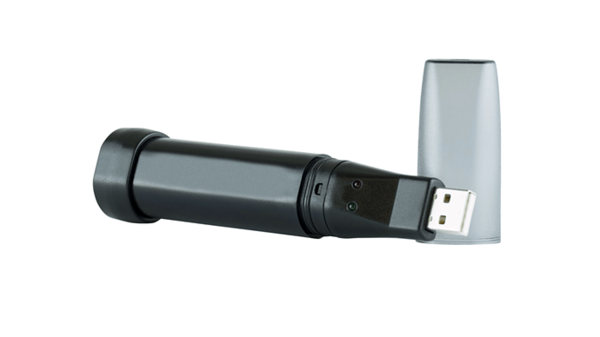

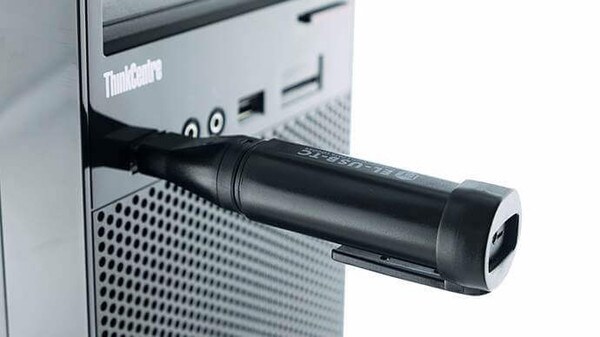

The USB Thermocouple data logger accepts any Type K, J or T Thermocouple wire. Depending on the thermocouple, the logger can measure and record temperatures from -200°C. Using the software, thermocouple type, thermocouple calibration, sampling rate, start-time, logging mode, and downloading and analysis of data can all be performed. The data logger features a user-replaceable battery, high and low alarm settings, LEDs to show status of logging and USB interface for fast data download.

The datalogger comes with a long-life lithium battery, as well as red, green, and orange LED status indicators. Temperature measurement ranges include: -130°C to +900°C for a J type thermocouple, and -200°C to +1300°C for a K type thermocouple, and -200°C to +350°C for a T type thermocouple. Temperature resolution is 0.5°C, and accuracy is to within ±1.0°C. Software-selectable logging intervals include 1 second, 10 seconds, 1 minute, 5 minutes, 30 minutes, 30 minutes, 1 hour, 6 hours, and 12 hours

    Type of Sensor: Thermocouple
    Temperature Sensing Range: -328°F ~ 2272°F (-200°C ~ 1245°C)
    Temperature Accuracy: +/- 4°F (+/- 2°C) typical
    Temperature Resolution: 0.1°
    Temperature Scale: °F and °C
    Min/Max Memory: Yes
    Weight: .2
    Calibration Available: Yes (purchased separately)
    Battery Life: 12 Months Typical @ 30 min Recording Interval
    Battery Backup: No
    Sampling Rate: 10s 1m 5m 30m 1hr 6hr or 12hr
    Special Notes: Accepts multiple Thermocouple Types: J-K-T
    Number of Sensors: One
    Data Points: 32,000
    Exportable Data: Yes
    Display: None
    Requires Software: Yes - FREE Download
    Software Type: Windows 10, 8, 7 (32-bit and 64-Bit Versions)
    Network Connectivity: USB
    • Thermocouple Logger
    • Free Software ( Download )
    • Type "K" Thermocouple (Max 110°C / 230°F)
    • 1/2" AA Battery
    • Expert Technical Support
    How to Set Up Logger VideoHow to Use Logger Video
