Thermocouple Input USB Logger

(0)No Reviews yet
1 – 9$135.45
10 – 24$128.68
25 – 49$121.91
50 – 74$115.13
75 – 99$111.75
100 +$108.36
Provided: Each
-328°F ~ 2272°F (-200°C ~ 1245°C)
FREE Data Logging Software Download
Accepts Thermocouple Types  J - K- T
TIPTEMP Thermal Advisors are available
to discuss the proper use of thermocouple sensors.
Call to discuss your application / intended use.
Supplied with replaceable lithium battery and
"K" thermocouple rated from -4 ~ 230°F (-20~ 110°C)


Current Stock: 12

Notable Features

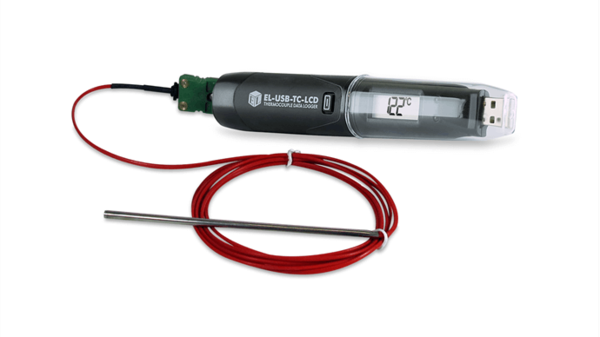

This standalone data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple.The thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the logger and view downloaded data by plugging the module into a PC's USB port and using the supplied software. Data can then be graphed, printed and exported to other applications.The high contrast LCD can show several different temperature variables. The user can cycle between these using the push button. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year
Type of Sensor: Thermocouple
Temperature Sensing Range: -328 ~ +2272°F ( -200 ~ 1245°C )
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Resolution: 0.1°
Temperature Scale: °F and °C
Dimensions: 1.06" x 3.7" (27mm x 94mm)
Weight: .2
Calibration Available: Yes (purchased separately)
Battery Life: Approx. One Year ( depending on sampling rate )
Sampling Rate: 1 second to 1 hour
Special Notes: Includes Thermocouple with limited temp range.
  • USB Thermocouple Logger
  • Software ( Free Download )
  • 1/2 AA Battery
  • Included "K" thermocouple rated from -4 ~ 230°F (-20~ 110°C)
  • Quick Start Guide
  • Expert Technical Support
How to Set Up Logger VideoHow to Use Logger Video

  • Assign Logger Name
  • Choose: °C, °F
  • Choose: Logging rate (1s, 10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
  • Set: High and Low Alarm points
  • Choose: Immediate, delayed and push-to-start logging
  • Choose: Display off, on for 30 seconds after button press , or permanently on
  • Data rollover (Allows unlimited logging periods by overwriting the oldest data when the memory is full)
