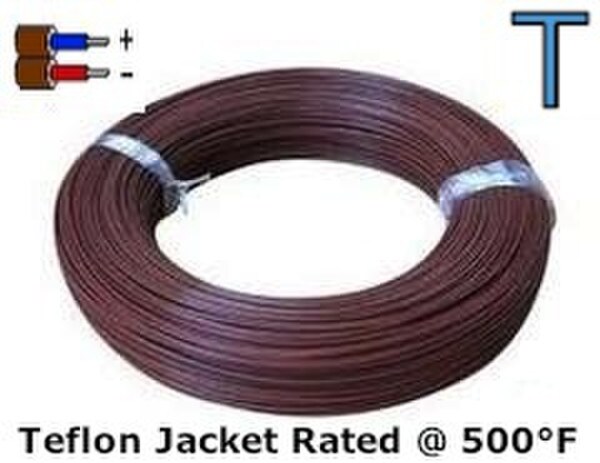

“T” SLE Thermocouple Grade Wire Teflon
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics. This reliable thermocouple wire is recommended for use in industrial, research, pharmaceutical, or aerospace applications to name a few. Also ideal for making your own thermocouples.
Below is a list of "T" Thermocouple Grade Wire in various configurations. Please contact us for price and availability.
Below is a list of "T" Thermocouple Grade Wire in various configurations. Please contact us for price and availability.

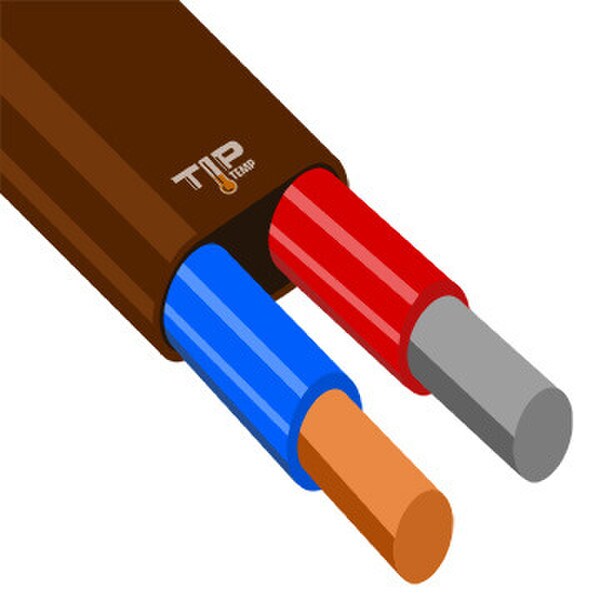

T | + Copper - Constantan | Positive = Blue Negative = Red | ||
Wire Insulation | Max Temp | Gauge | Wire Type | Product Code |
GLASS BRAID GLASS BRAID | 900 F | 20 | solid | IWT-20-GG |
20 | stranded | IWT-20s-GG | ||
24 | solid | IWT-24-GG | ||
24 | stranded | IWT-24s-GG | ||
28 | solid | IWT-28-GG | ||
30 | solid | IWT-30-GG | ||
STAINLESS STEEL | 20 | solid | IWT-20-GG-SSOB | |
20 | stranded | IWT-20s-GG-SSOB | ||
24 | solid | IWT-24-GG-SSOB | ||
24 | stranded | IWT-24s-GG-SSOB | ||
TEFLON FEP TEFLON | 400 F | 20 | solid | IWT-20-TT |
20 | stranded | IWT-20s-TT | ||
22 | stranded | IWT-22s-TT | ||
24 | stranded | IWT-24s-TT | ||
24 | solid | IWT-24-TT | ||
30 | solid | IWT-30-TT | ||
36 | solid | IWT-36-TT | ||
40 | solid | IWT-40-TT | ||
STAINLESS STEEL OVERBRAID | 20 | solid | IWT-20-TT-SSOB | |
20 | stranded | IWT-20s-TT-SSOB | ||
24 | solid | IWT-24-TT-SSOB | ||
24 | stranded | IWT-24s-TT-SSOB |
Sold As: | Feet |
Thermocouple Type: | Thermocouple |
Wire Material: | Teflon |
Wire Gauge: | 24 |
Special Limits: | Yes |
- Type "T" thermocouple grade wire Solid 24 Ga. - cut to your required length
- Special Limits of Error ( SLE )
- Expert Technical Support
