🔵"T" High Accuracy Thermocouple Wire
✅ Thermocouple grade Type T wire for direct temperature measurement
✅ High accuracy signal transmission
✅ 24 AWG stranded conductors for flexibility
✅ Teflon insulation rated to 500°F (260°C)
✅ ANSI color-coded conductors for correct polarity
✅ Ideal for laboratory and precision industrial applications
──────────────────────────
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics. This reliable thermocouple wire is recommended for use in industrial, research, pharmaceutical, or aerospace applications to name a few. Also ideal for making your own thermocouples.
Below is a list of "T" Thermocouple Grade Wire in various configurations. Please contact us for price and availability.
| T | + Copper - Constantan | Positive = Blue Negative = Red | |||
| Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
GLASS BRAID GLASS BRAID | 900 F 482 C | 20 | solid | 337 ft | IWT-20-GG |
| 20 | stranded | 337 ft | IWT-20s-GG | ||
| 24 | solid | 134 ft | IWT-24-GG | ||
| 24 | stranded | 134 ft | IWT-24s-GG | ||
| 28 | solid | 52 ft | IWT-28-GG | ||
| 30 | solid | 34 ft | IWT-30-GG | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 337 ft | IWT-20-GG-SSOB | |
| 20 | stranded | 337 ft | IWT-20s-GG-SSOB | ||
| 24 | solid | 134 ft | IWT-24-GG-SSOB | ||
| 24 | stranded | 134 ft | IWT-24s-GG-SSOB | ||
TEFLON TEFLON | 500 F 260 C | 20 | solid | 337 ft | IWT-20-TT |
| 20 | stranded | 337 ft | IWT-20s-TT | ||
| 22 | stranded | 220 ft | IWT-22s-TT | ||
| 24 | stranded | 134 ft | IWT-24s-TT | ||
| 24 | solid | 134 ft | IWT-24-TT | ||
| 30 | solid | 34 ft | IWT-30-TT | ||
| 36 | solid | 8 ft | IWT-36-TT | ||
| 40 | solid | 9 in | IWT-40-TT | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 337 ft | IWT-20-TT-SSOB | |
| 20 | stranded | 337 ft | IWT-20s-TT-SSOB | ||
| 24 | solid | 134 ft | IWT-24-TT-SSOB | ||
| 24 | stranded | 134 ft | IWT-24s-TT-SSOB | ||
*"Signal Dist." relates to how far thermocouple signal travels without amplification.

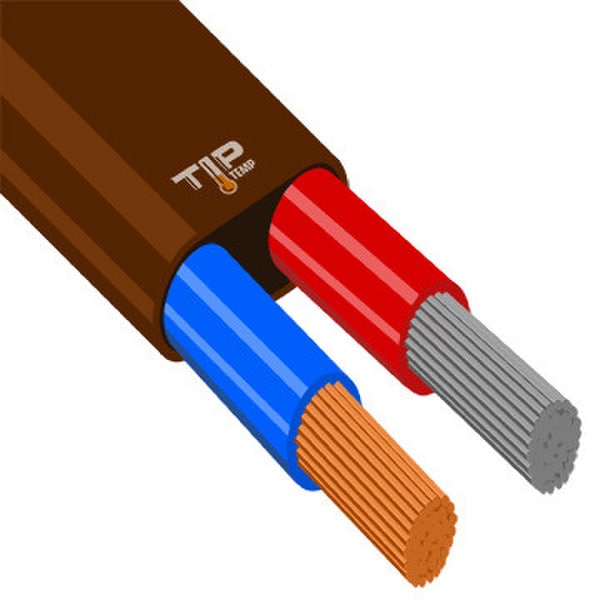

- Part Number IWT-20S-TT / TIPWRT018

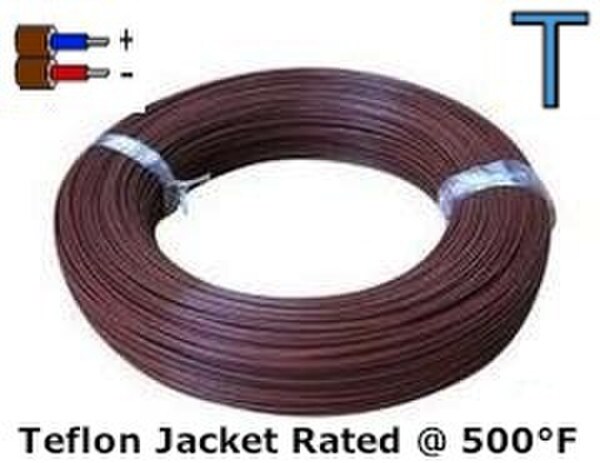

- Type "T" Wire Teflon Jacket 20 Ga. Stranded
- Teflon is rated at max 500°F / 260°C
- Accuracy ±.5°C / 1°F per ASTM standards.
- Max Distance Signal will travel is 337 Ft. without amplification.
- (Blue ) Copper + / (Red) Constantan
- Type "T" thermocouple grade wire Stranded 20 Ga. - cut to your required length
- Expert Technical Support
