  • TIPWRT007: IWT-20-TT Thermocouple Grade Wire

“T" High Accuracy Thermocouple Grade Wire

(0)No Reviews yet
$1.17
QuantityPrice
25 – 99$1.17
100 – 249$1.11
250 – 499$1.05
500 – 999$0.99
1000 +$0.94
SKU: TIPWRT007
Provided: Feet
Teflon max 500°F / 260°C

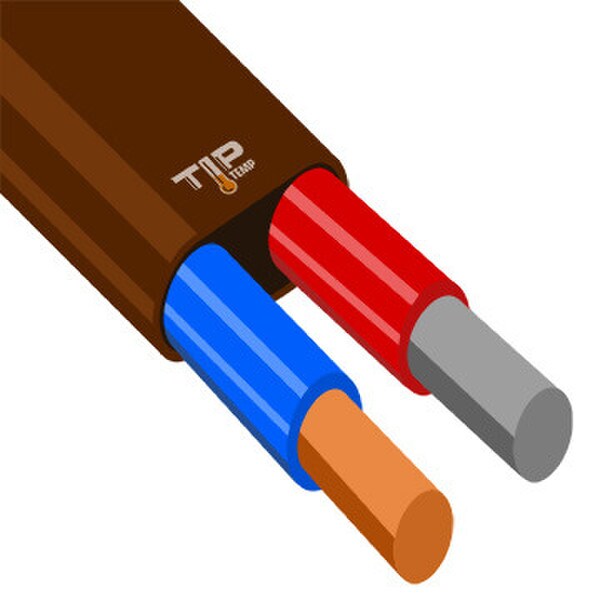

(Blue) Copper + / (Red) Constantan -

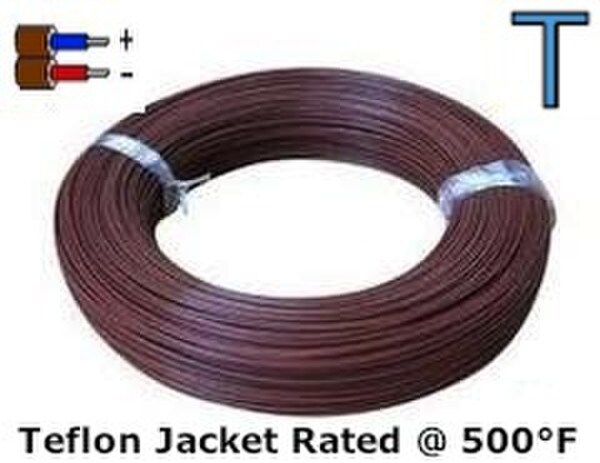

Type “T” Wire, Teflon Jacket, 20 Ga. Solid
Max Distance Signal will travel is 337 Ft. without amplification

IN STOCK

Current Stock: 2085

Notable Features

Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics. This reliable thermocouple wire is recommended for use in industrial, research, pharmaceutical, or aerospace applications to name a few. Also ideal for making your own thermocouples.

Below is a list of "T" Thermocouple Grade Wire in various configurations. Please contact us for price and availability.

T+ Copper

- Constantan
Positive =
Blue

Negative =
Red
Wire InsulationMax TempGaugeWire TypeSignal Dist.Product Code

GLASS BRAID
on each conductor

GLASS BRAID
overall

900 F
482 C

20solid337 ftIWT-20-GG
20stranded337 ftIWT-20s-GG
24solid134 ftIWT-24-GG
24stranded134 ftIWT-24s-GG
28solid52 ftIWT-28-GG
30solid34 ftIWT-30-GG

STAINLESS STEEL
OVERBRAID

20solid337 ftIWT-20-GG-SSOB
20stranded337 ftIWT-20s-GG-SSOB
24solid134 ftIWT-24-GG-SSOB
24stranded134 ftIWT-24s-GG-SSOB

TEFLON
on each conductor

TEFLON
overall

500 F
260 C

20solid337 ftIWT-20-TT
20stranded337 ftIWT-20s-TT
22stranded220 ftIWT-22s-TT
24stranded134 ftIWT-24s-TT
24solid134 ftIWT-24-TT
30solid34 ftIWT-30-TT
36solid8 ftIWT-36-TT
40solid9 inIWT-40-TT
STAINLESS STEEL
OVERBRAID
20solid337 ftIWT-20-TT-SSOB
20stranded337 ftIWT-20s-TT-SSOB
24solid134 ftIWT-24-TT-SSOB
24stranded134 ftIWT-24s-TT-SSOB

*"Signal Dist." relates to how far thermocouple signal travels without amplification.
  • Part Number IWT-20-TT / TIPWRT007
  • Type "T" Wire Teflon Jacket 20 Ga. Solid
  • Teflon is rated at max 500°F / 260°C
  • Accuracy ±.5°C / 1°F per ASTM standards.
  • Max Distance Signal will travel is 337 Ft. without amplification.
  • (Blue ) Copper + / (Red) Constantan
  • Type "T" thermocouple grade wire Solid 20 Ga. - cut to your required length
  • Expert Technical Support
