🧰 HotSpot Carbon Graphite Block

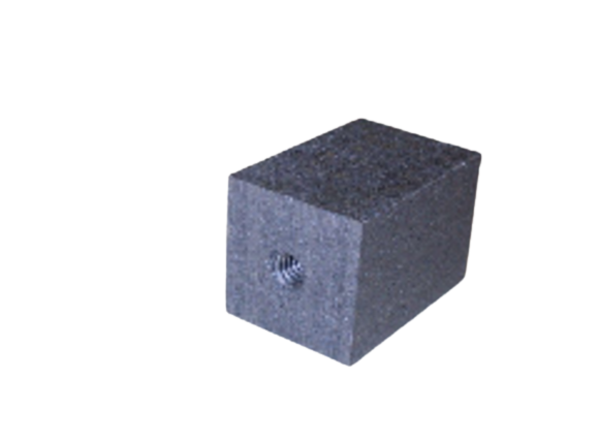

The DCC HotSpot Carbon Graphite Block (13308-01) is a replacement welding accessory designed for use with HotSpot thermocouple welders.
The carbon graphite block provides a conductive contact surface during thermocouple welding operations. Its compact 1.5" × 1" × 1" construction features a 1/4"-20 threaded connection for mounting to compatible welding equipment.
Replacing worn or damaged graphite blocks helps maintain reliable welding contact and consistent thermocouple fabrication.
──────────────────────────
Ideal Applications
🧵 Thermocouple junction fabrication
⚙️ DCC HotSpot welding equipment
🌡 Custom thermocouple manufacturing
🏭 Industrial sensor production
🧪 Laboratory thermocouple fabrication
🔧 Replacement of worn graphite blocks
🧰 Welding equipment maintenance
Compliance & Risk Mitigation
⚡ Conductive graphite supports welding contact
🔧 Replacement helps maintain weld consistency
🔩 Verify 1/4"-20 mounting compatibility
🛡️ Inspect graphite for wear or cracking
⚙️ Confirm compatibility before installation
⚡ Disconnect power before replacement
🧰 Follow HotSpot maintenance procedures
This carbon graphite block is intended for compatible DCC HotSpot thermocouple welders. Verify the mounting thread, block dimensions, and welder compatibility before installation. Inspect the block periodically and replace it when worn, cracked, or damaged. The graphite block does not require calibration; completed thermocouples should be inspected and verified according to applicable measurement requirements.
