"J" Thermocouple Grade Wire with Teflon Jacket & SSOB"

(0)No Reviews yet
$1.95
QuantityPrice
25 – 99$1.95
100 – 249$1.56
250 – 499$1.37
500 – 999$1.17
1000 +$0.98
SKU: TIPWRJ022
Provided: Feet
Teflon is rated at max 500°F / 260°C
(White ) Iron + / (Red) Constantan ( White Wire is Magnetic )

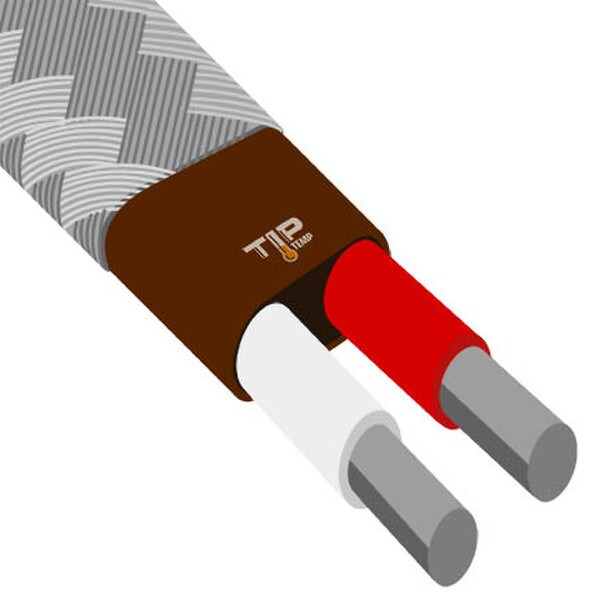

Type “J” Wire, Teflon Jacket, 24 Ga. Solid, Stainless Steel Overbraid

IN STOCK

Current Stock: 11

Notable Features

Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.

Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.

CalibrationWire InsulationMax TempGaugeWire TypeSignal
Dist.
Product Code

J

+ Iron

- Constantan

Positive =
White

Negative =
Red

GLASS BRAID
on each conductor

GLASS BRAID
overall

900 F
482 C

20solid280 ftIWJ-20-GG
20stranded280 ftIWJ-20s-GG
24solid110 ftIWJ-24-GG
24stranded110 ftIWJ-24s-GG
28solid44 ftIWJ-28-GG
30solid27 ftIWJ-30-GG
36solid7 ftIWJ-36-GG

STAINLESS STEEL
OVERBRAID

20solid280 ftIWJ-20-GG-SSOB
20stranded280 ftIWJ-20s-GG-SSOB
24solid110 ftIWJ-24-GG-SSOB
24stranded110 ftIWJ-24s-GG-SSOB

TEFLON
on each conductor

TEFLON
overall

500 F
260 C

20solid280 ftIWJ-20-TT
20stranded280 ftIWJ-20s-TT
22stranded200 ftIWJ-22s-TT
24stranded110 ftIWJ-24s-TT
24solid110 ftIWJ-24-TT
30solid27 ftIWJ-30-TT
36solid7 ftIWJ-36-TT
40solid8 inIWJ-40-TT

STAINLESS STEEL
OVERBRAID

20solid280 ftIWJ-20-TT-SSOB
20stranded280 ftIWJ-20s-TT-SSOB
24solid110 ftIWJ-24-TT-SSOB
24stranded110 ftIWJ-24s-TT-SSOB

*"Signal Dist." relates to how far thermocouple signal travels without amplification.
  • Part Number IWJ-20-TT-SSOB / TIPWRJ022
  • Type "J" Wire Teflon Jacket 20 Ga. Solid w/ Stainless Steel Overbraid
  • Teflon is rated at max 500°F / 260°C
  • Accuracy ±2°C / 4°F per ASTM standards.
  • Max Distance Signal will travel is 280 Ft. without amplification.
  • (White ) Iron + / (Red) Constantan ( White is Magnetic )
  • Type "J" thermocouple grade wire Solid 20 Ga with Stainless Steel Overbraid. - cut to your required length
  • Expert Technical Support
