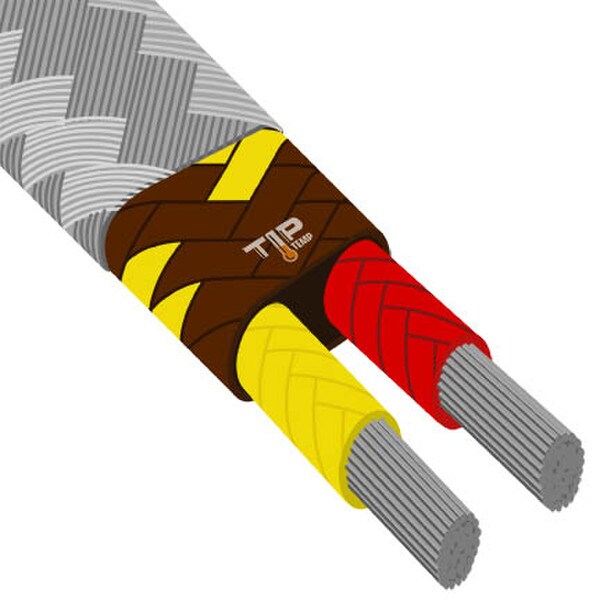

“K” Thermocouple Grade Wire with Fiberglass Jacket and Stainless Steel Overbraid
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
| K | + Chromel - Alumel | Positive = Yellow Negative = Red | |||
| Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
| GLASS BRAID on each conductor GLASS BRAID overall | 900 F 482 C | 20 | solid | 170 ft | IWK-20-GG |
| 20 | stranded | 170 ft | IWK-20s-GG | ||
| 24 | solid | 67 ft | IWK-24-GG | ||
| 24 | stranded | 67 ft | IWK-24s-GG | ||
| 28 | solid | 28 ft | IWK-28-GG | ||
| 30 | solid | 17 ft | IWK-30-GG | ||
| 36 | solid | 4 ft | IWK-36-GG | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-GG-SSOB | |
| 20 | stranded | 170 ft | IWK-20s-GG-SSOB | ||
| 24 | solid | 67 ft | IWK-24-GG-SSOB | ||
| 24 | stranded | 67 ft | IWK-24s-GG-SSOB | ||
| TEFLON on each conductor TEFLON overall | 500 F 260 C | 20 | solid | 170 ft | IWK-20-TT |
| 20 | stranded | 170 ft | IWK-20s-TT | ||
| 22 | stranded | 110 ft | IWK-22s-TT | ||
| 24 | stranded | 67 ft | IWK-24s-TT | ||
| 24 | solid | 67 ft | IWK-24-TT | ||
| 30 | solid | 17 ft | IWK-30-TT | ||
| 36 | solid | 4 ft | IWK-36-TT | ||
| 40 | solid | 7 in | IWK-40-TT | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-TT-SSOB | |
| 20 | stranded | 170 ft | IWK-20s-TT-SSOB | ||
| 24 | solid | 67 ft | IWK-24-TT-SSOB | ||
| 24 | stranded | 67 ft | IWK-24s-TT-SSOB | ||
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
| Sold As: | Feet |
| Thermocouple Type: | Thermocouple |
| Wire Material: | SSOB Fiberglass |
| Wire Gauge: | 24 Ga. Stranded |
When exposed to excessive heat the Stainless Steel Overbraid protects the Fiberglass Jacket from fraying and falling apart.
