General Purpose Quick Disconnect

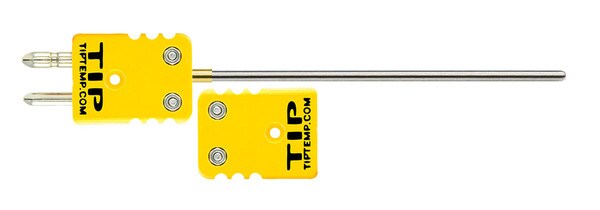

TC10-K-SS-116-G-12 ( TIPTCK068) Quick disconnect Type "K" Thermocouple with standard/large plug, ( Chromel / Alumel ) ( Red -/ Yelllow + ) 316 Stainless Steel Sheath, 1/16 diameter ( .062 ), grounded junction, 12" sheath length. Response Time:15 sec., Time constant: 3 sec. Temperature Limits: 920°C / 1690°F
| Type of Sensor: | Thermocouple K Chromel / Alumel |
| Temperature Sensing Range: | Based on sheath Diameter, MAX: 920°C / 1690°F |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Temperature Scale: | °F and °C |
| Sensor Dimensions: | 1/16" Dia. 0.62 |
| Calibration Available: | Yes (purchased separately) |
- Type K Thermocouple 12" Length, 1/16" Dia., Grounded
