“K” Thermocouple Grade Wire with High Temp Fiberglass Jacket and SSOB
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
| K | + Chromel - Alumel | Positive = Yellow Negative = Red | |||
| Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
| GLASS BRAID on each conductor GLASS BRAID overall | 900 F 482 C | 20 | solid | 170 ft | IWK-20-GG |
| 20 | stranded | 170 ft | IWK-20s-GG | ||
| 24 | solid | 67 ft | IWK-24-GG | ||
| 24 | stranded | 67 ft | IWK-24s-GG | ||
| 28 | solid | 28 ft | IWK-28-GG | ||
| 30 | solid | 17 ft | IWK-30-GG | ||
| 36 | solid | 4 ft | IWK-36-GG | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-GG-SSOB | |
| 20 | stranded | 170 ft | IWK-20s-GG-SSOB | ||
| 24 | solid | 67 ft | IWK-24-GG-SSOB | ||
| 24 | stranded | 67 ft | IWK-24s-GG-SSOB | ||
| TEFLON on each conductor TEFLON overall | 500 F 260 C | 20 | solid | 170 ft | IWK-20-TT |
| 20 | stranded | 170 ft | IWK-20s-TT | ||
| 22 | stranded | 110 ft | IWK-22s-TT | ||
| 24 | stranded | 67 ft | IWK-24s-TT | ||
| 24 | solid | 67 ft | IWK-24-TT | ||
| 30 | solid | 17 ft | IWK-30-TT | ||
| 36 | solid | 4 ft | IWK-36-TT | ||
| 40 | solid | 7 in | IWK-40-TT | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-TT-SSOB | |
| 20 | stranded | 170 ft | IWK-20s-TT-SSOB | ||
| 24 | solid | 67 ft | IWK-24-TT-SSOB | ||
| 24 | stranded | 67 ft | IWK-24s-TT-SSOB | ||
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
- Part Number IWK-20-HG-SSOB-SLE / TIPWRK051P01

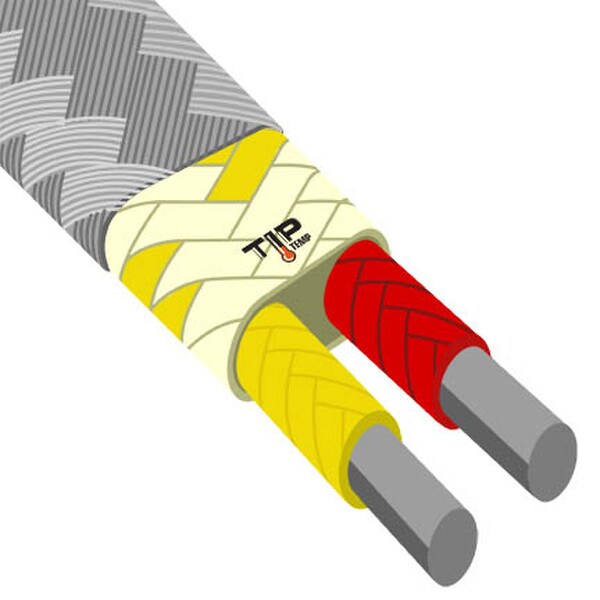

- Type "K" Wire High Temp Fiberglass Jacket 20 Ga. Solid with Stainless Steel Overbraid
- High Temp Fiberglass is rated at max 1300°F / 704°C
- Accuracy ±1°C / 2°F per ASTM standards.
- Max Distance Signal will travel is 170 Ft. without amplification.
- (Yellow ) Chromel + / (Red) Alumel
- ✅ High Temp Fiberglass Type “K” Thermocouple Wire -Solid 20 AWG
✅ Special Limits of Error Accuracy
✅ Cut to your required lengthExpert Technical Support - ✅ Expert Technical Support
