⚫ 20 Ga. Type "J" Thermocouple Wire

Name: TIPWRJ010: IWJ-20-TT Thermocouple Grade Wire
SKU: TIPWRJ010
Price: 1.1 USD
Availability: InStock

(0)No Reviews yet

$1.10

Quantity	Price
25 – 99	$1.10
100 – 249	$0.99
250 – 499	$0.88
500 – 999	$0.77
1000 +	$0.66

SKU: TIPWRJ010

Provided: Feet

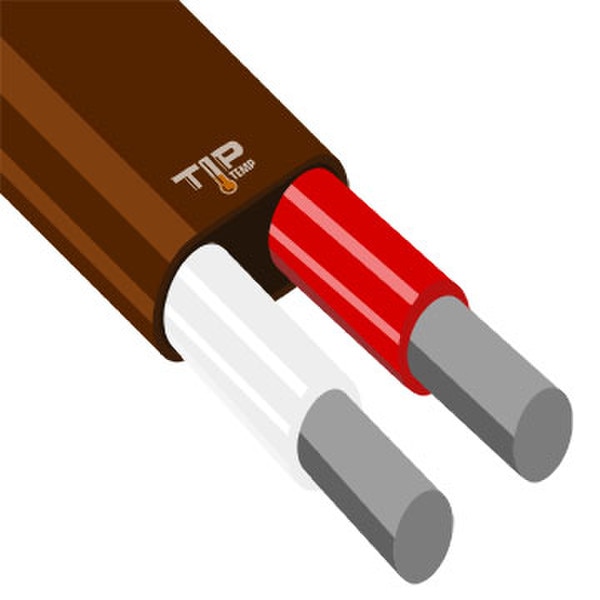

Thermocouple grade solid conductor with Teflon jacket

──────────────────────────

Quick Specs

🌡 Thermocouple Type: ⚫ J (Iron / Constantan)
🛡️ Conductor Size: 20 AWG Solid

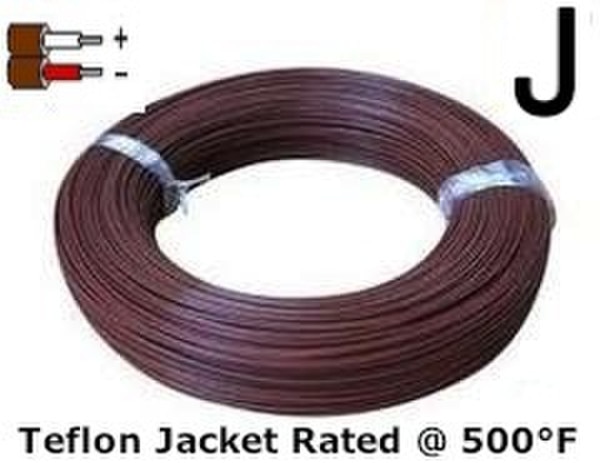

🛡️ Insulation / Jacket: Teflon (Max 500°F / 260°C)
📏 Sold As: Per Foot
📡 Max Signal Distance: 280 ft (without amplification)
🎨 Polarity: White (+ Iron, Magnetic) / Red (– Constantan)
🏷️ SKU: TIPWRJ010

──────────────────────────

📦 Browse the related products below, explore compatible Type J probes, connectors, and panel systems that integrate with this wire.

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

IN STOCK

Current Stock: 910

Quantity

Notable Features

Back

✅ Thermocouple grade Type J extension wire
✅ 20 AWG solid conductors for stable signal transmission
✅ Teflon insulation rated to 500°F (260°C)
✅ Industry-standard ANSI color coding
✅ White positive conductor is magnetic (Iron)
✅ Ideal for extending Type J thermocouple circuits

──────────────────────────

Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.

Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.

J		+ Iron - Constantan		Positive = White Negative = Red
Wire Insulation	Max Temp	Gauge	Wire Type	Signal Dist.	Product Code
GLASS BRAID on each conductor GLASS BRAID overall	900 F 482 C	20	solid	280 ft	IWJ-20-GG
		20	stranded	280 ft	IWJ-20s-GG
		24	solid	110 ft	IWJ-24-GG
		24	stranded	110 ft	IWJ-24s-GG
		28	solid	44 ft	IWJ-28-GG
		30	solid	27 ft	IWJ-30-GG
		36	solid	7 ft	IWJ-36-GG
STAINLESS STEEL OVERBRAID		20	solid	280 ft	IWJ-20-GG-SSOB
		20	stranded	280 ft	IWJ-20s-GG-SSOB
		24	solid	110 ft	IWJ-24-GG-SSOB
		24	stranded	110 ft	IWJ-24s-GG-SSOB
TEFLON on each conductor TEFLON overall	500 F 260 C	20	solid	280 ft	IWJ-20-TT
		20	stranded	280 ft	IWJ-20s-TT
		22	stranded	200 ft	IWJ-22s-TT
		24	stranded	110 ft	IWJ-24s-TT
		24	solid	110 ft	IWJ-24-TT
		30	solid	27 ft	IWJ-30-TT
		36	solid	7 ft	IWJ-36-TT
		40	solid	8 in	IWJ-40-TT
STAINLESS STEEL OVERBRAID		20	solid	280 ft	IWJ-20-TT-SSOB
		20	stranded	280 ft	IWJ-20s-TT-SSOB
		24	solid	110 ft	IWJ-24-TT-SSOB
		24	stranded	110 ft	IWJ-24s-TT-SSOB

*"Signal Dist." relates to how far thermocouple signal travels without amplification.
