⚫ Type "J" Thermocouple Grade Wire – Fiberglass

Name: TIPWRJ007: IWJ-24-GG Thermocouple Grade Fiberglass Wire
SKU: TIPWRJ007
Price: 1.16 USD
Availability: InStock

(0)No Reviews yet

$1.16

Quantity Pricing

Quantity	Price
25 – 99	$1.16
100 – 249	$1.04
250 – 499	$0.93
500 – 999	$0.81
1000 +	$0.70

SKU: TIPWRJ007

Provided: Feet

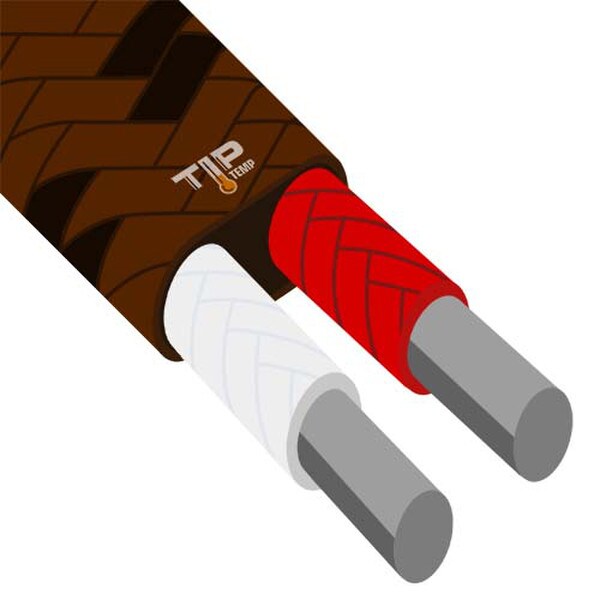

24 AWG solid wire with high-temperature fiberglass insulation

──────────────────────────

Quick Specs

🌡 Thermocouple Type: ⚫ J (Iron / Constantan)
🛡️ Conductor Size: 24 AWG Solid
🛡️ Insulation / Jacket: Fiberglass
🌡 Max Jacket Temperature: 900°F (482°C)
🎯 Accuracy: ±2°C / ±4°F (ASTM Standard Limits)
🎨 Polarity: White (+ Iron, Magnetic) / Red (– Constantan)
📏 Sold As: Per Foot (Cut to Length)
📡 Max Signal Distance: 110 ft (without amplification)
🏷️ Model: IWJ-24-GG
🏷️ SKU: TIPWRJ007

──────────────────────────

📦 Browse the related products below, explore compatible Type J thermocouples, connectors, and instrumentation that integrate with this wire.
🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

IN STOCK

Current Stock: 798

Quantity

Notable Features

Back

✅ Thermocouple grade Type J wire for direct temperature sensing

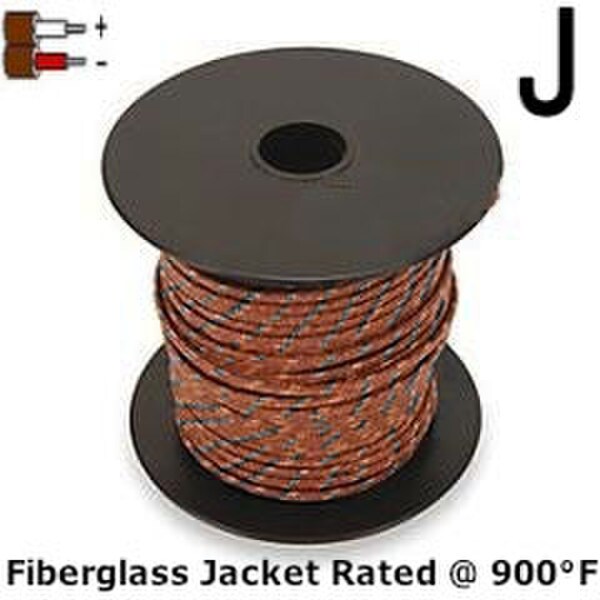

✅ Fiberglass insulation rated to 900°F (482°C)
✅ 24 AWG solid conductors for stable signal transmission
✅ ANSI color-coded conductors for proper polarity
✅ White Iron conductor is magnetic for easy identification
✅ Ideal for high-temperature industrial and furnace applications

──────────────────────────

Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.

Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.

J		+ Iron - Constantan		Positive = White Negative = Red
Wire Insulation	Max Temp	Gauge	Wire Type	Signal Dist.	Product Code
GLASS BRAID on each conductor GLASS BRAID overall	900 F 482 C	20	solid	280 ft	IWJ-20-GG
		20	stranded	280 ft	IWJ-20s-GG
		24	solid	110 ft	IWJ-24-GG
		24	stranded	110 ft	IWJ-24s-GG
		28	solid	44 ft	IWJ-28-GG
		30	solid	27 ft	IWJ-30-GG
		36	solid	7 ft	IWJ-36-GG
STAINLESS STEEL OVERBRAID		20	solid	280 ft	IWJ-20-GG-SSOB
		20	stranded	280 ft	IWJ-20s-GG-SSOB
		24	solid	110 ft	IWJ-24-GG-SSOB
		24	stranded	110 ft	IWJ-24s-GG-SSOB
TEFLON on each conductor TEFLON overall	500 F 260 C	20	solid	280 ft	IWJ-20-TT
		20	stranded	280 ft	IWJ-20s-TT
		22	stranded	200 ft	IWJ-22s-TT
		24	stranded	110 ft	IWJ-24s-TT
		24	solid	110 ft	IWJ-24-TT
		30	solid	27 ft	IWJ-30-TT
		36	solid	7 ft	IWJ-36-TT
		40	solid	8 in	IWJ-40-TT
STAINLESS STEEL OVERBRAID		20	solid	280 ft	IWJ-20-TT-SSOB
		20	stranded	280 ft	IWJ-20s-TT-SSOB
		24	solid	110 ft	IWJ-24-TT-SSOB
		24	stranded	110 ft	IWJ-24s-TT-SSOB

*"Signal Dist." relates to how far thermocouple signal travels without amplification.
