🟡 “K” TC Grade Wire w/ SS Overbraid
Key Features
✅ Thermocouple-grade accuracy for precise measurements
✅ Stainless steel overbraid for abrasion and EMI protection
✅ Fiberglass insulation rated for high-temperature use
✅ Ideal for furnaces, kilns, and industrial process sensing
✅ Sold by the foot for custom installations
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
| K | + Chromel - Alumel | Positive = Yellow Negative = Red | |||
| Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
| GLASS BRAID on each conductor GLASS BRAID overall | 900 F 482 C | 20 | solid | 170 ft | IWK-20-GG |
| 20 | stranded | 170 ft | IWK-20s-GG | ||
| 24 | solid | 67 ft | IWK-24-GG | ||
| 24 | stranded | 67 ft | IWK-24s-GG | ||
| 28 | solid | 28 ft | IWK-28-GG | ||
| 30 | solid | 17 ft | IWK-30-GG | ||
| 36 | solid | 4 ft | IWK-36-GG | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-GG-SSOB | |
| 20 | stranded | 170 ft | IWK-20s-GG-SSOB | ||
| 24 | solid | 67 ft | IWK-24-GG-SSOB | ||
| 24 | stranded | 67 ft | IWK-24s-GG-SSOB | ||
| TEFLON on each conductor TEFLON overall | 500 F 260 C | 20 | solid | 170 ft | IWK-20-TT |
| 20 | stranded | 170 ft | IWK-20s-TT | ||
| 22 | stranded | 110 ft | IWK-22s-TT | ||
| 24 | stranded | 67 ft | IWK-24s-TT | ||
| 24 | solid | 67 ft | IWK-24-TT | ||
| 30 | solid | 17 ft | IWK-30-TT | ||
| 36 | solid | 4 ft | IWK-36-TT | ||
| 40 | solid | 7 in | IWK-40-TT | ||
| STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-TT-SSOB | |
| 20 | stranded | 170 ft | IWK-20s-TT-SSOB | ||
| 24 | solid | 67 ft | IWK-24-TT-SSOB | ||
| 24 | stranded | 67 ft | IWK-24s-TT-SSOB | ||
*"Signal Dist." relates to how far thermocouple signal travels without amplification.

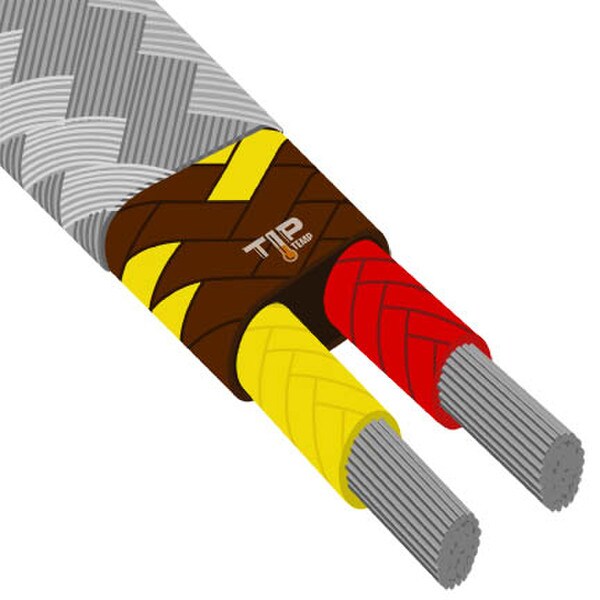

- Part Number IWK-20S-GG-SSOB / TIPWRK092
- Type "K" Wire Fiberglass Jacket 20 Ga. Stranded Stainless Steel Overbraid
- Fiberglass is rated at max 900°F / 482°C
- Accuracy ±2°C / 4°F per ASTM standards.
- Max Distance Signal will travel is 170 Ft. without amplification.
- (Yellow ) Chromel + / (Red) Alumel
- Type "K" thermocouple grade wire Stranded 20 Ga. Fiberglass insulated with SSOB - cut to your required length
- Expert Technical Support
Fiberglass is rated at a maximum of 900°F / 482°C. Above this temperature, It will fray and fall apart. SSOB is used to hold the insulation together.
