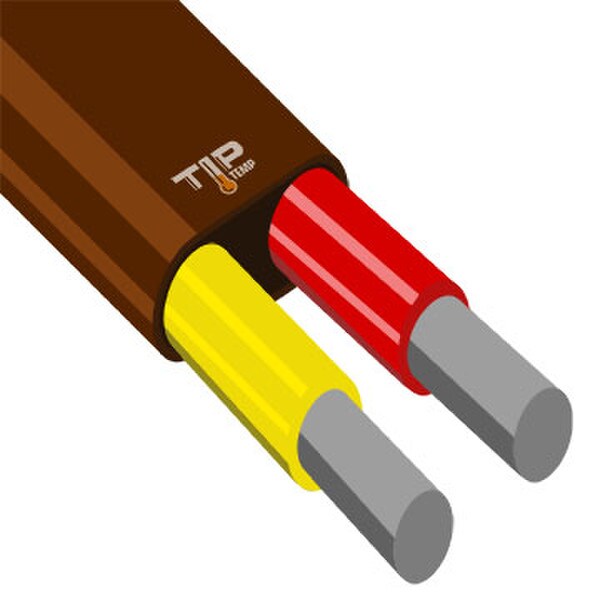

🟡 “K” Thermocouple Grade Wire Teflon Jacket

Name: TIPWRK002: IWK-24-TT Thermocouple Wire
SKU: TIPWRK002
Price: 0.78 USD
Availability: InStock

(0)No Reviews yet

$0.78

Quantity	Price
25 – 99	$0.78
100 – 249	$0.74
250 – 499	$0.67
500 – 999	$0.59
1000 +	$0.52

SKU: TIPWRK002

Provided: Feet

Flexible, ASTM-compliant Type K wire for accurate temperature measurement

──────────────────────────

Quick Specs

🌡 Thermocouple Type: 🟡 K (Chromel / Alumel)
🎯 Accuracy: ±2°C / ±4°F (ASTM standard limits)
🔥 Max Temperature: 500°F (260°C)
🧵 Wire Gauge: 24 AWG (solid conductors)

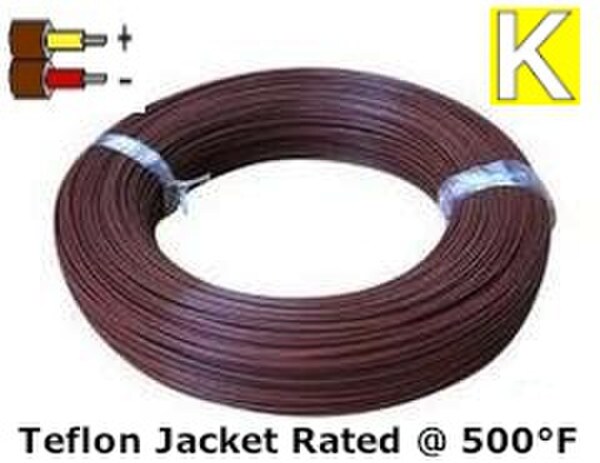

🧥 Insulation: Teflon (FEP) jacket
🧲 Polarity Identification:
• Yellow = Chromel (+)
• Red = Alumel (–, magnetic)
📏 Max Signal Distance: 67 ft (without amplification)
📦 Sold As: Cut to length (per foot)

──────────────────────────

Applications

• Thermocouple extensions and replacements
• Industrial and laboratory instrumentation
• Control panels and OEM sensor builds
• General-purpose Type K temperature measurement

──────────────────────────

📦 Browse the related products below to explore compatible thermocouple probes, connectors, and accessories that integrate seamlessly with this wire.
🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

Max Distance Signal will travel is 67 Ft. without amplification

IN STOCK

Current Stock: 369

Quantity

Notable Features

Back

✅ Thermocouple-grade wire for accurate sensing
✅ Teflon jacket provides excellent chemical resistance
✅ Suitable for moderate-temperature environments
✅ Solid conductors ensure stable signal transmission
✅ Standard ANSI color coding for easy identification
✅ Ideal for custom thermocouple assemblies

──────────────────────────

Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.

Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.

K		+ Chromel - Alumel		Positive = Yellow Negative = Red
Wire Insulation	Max Temp	Gauge	Wire Type	Signal Dist.	Product Code
GLASS BRAID on each conductor GLASS BRAID overall	900 F 482 C	20	solid	170 ft	IWK-20-GG
		20	stranded	170 ft	IWK-20s-GG
		24	solid	67 ft	IWK-24-GG
		24	stranded	67 ft	IWK-24s-GG
		28	solid	28 ft	IWK-28-GG
		30	solid	17 ft	IWK-30-GG
		36	solid	4 ft	IWK-36-GG
STAINLESS STEEL OVERBRAID		20	solid	170 ft	IWK-20-GG-SSOB
		20	stranded	170 ft	IWK-20s-GG-SSOB
		24	solid	67 ft	IWK-24-GG-SSOB
		24	stranded	67 ft	IWK-24s-GG-SSOB
TEFLON on each conductor TEFLON overall	500 F 260 C	20	solid	170 ft	IWK-20-TT
		20	stranded	170 ft	IWK-20s-TT
		22	stranded	110 ft	IWK-22s-TT
		24	stranded	67 ft	IWK-24s-TT
		24	solid	67 ft	IWK-24-TT
		30	solid	17 ft	IWK-30-TT
		36	solid	4 ft	IWK-36-TT
		40	solid	7 in	IWK-40-TT
STAINLESS STEEL OVERBRAID		20	solid	170 ft	IWK-20-TT-SSOB
		20	stranded	170 ft	IWK-20s-TT-SSOB
		24	solid	67 ft	IWK-24-TT-SSOB
		24	stranded	67 ft	IWK-24s-TT-SSOB

*"Signal Dist." relates to how far thermocouple signal travels without amplification.
