“K” Thermocouple Grade Wire
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.
OPTIONAL: Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
OPTIONAL: Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
K | + Chromel - Alumel | Positive = Yellow Negative = Red | |||
Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
GLASS BRAID on each conductor GLASS BRAID overall | 900 F 482 C | 20 | solid | 170 ft | IWK-20-GG |
20 | stranded | 170 ft | IWK-20s-GG | ||
24 | solid | 67 ft | IWK-24-GG | ||
24 | stranded | 67 ft | IWK-24s-GG | ||
28 | solid | 28 ft | IWK-28-GG | ||
30 | solid | 17 ft | IWK-30-GG | ||
36 | solid | 4 ft | IWK-36-GG | ||
STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-GG-SSOB | |
20 | stranded | 170 ft | IWK-20s-GG-SSOB | ||
24 | solid | 67 ft | IWK-24-GG-SSOB | ||
24 | stranded | 67 ft | IWK-24s-GG-SSOB | ||
TEFLON on each conductor TEFLON overall | 500 F 260 C | 20 | solid | 170 ft | IWK-20-TT |
20 | stranded | 170 ft | IWK-20s-TT | ||
22 | stranded | 110 ft | IWK-22s-TT | ||
24 | stranded | 67 ft | IWK-24s-TT | ||
24 | solid | 67 ft | IWK-24-TT | ||
30 | solid | 17 ft | IWK-30-TT | ||
36 | solid | 4 ft | IWK-36-TT | ||
40 | solid | 7 in | IWK-40-TT | ||
STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-TT-SSOB | |
20 | stranded | 170 ft | IWK-20s-TT-SSOB | ||
24 | solid | 67 ft | IWK-24-TT-SSOB | ||
24 | stranded | 67 ft | IWK-24s-TT-SSOB |
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
- Part Number IWK-20-GG / TIPWRK004

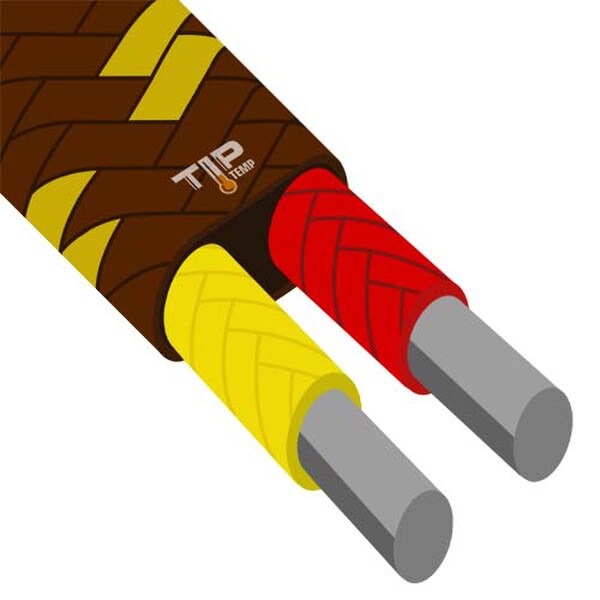

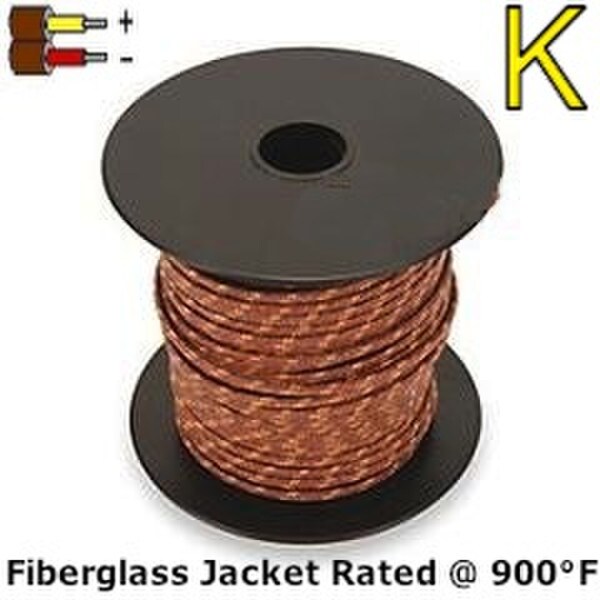

- Type "K" Wire Fiberglass Jacket 20 Ga. Solid
- Fiberglass is rated at max 900°F / 482°C
- Accuracy ±2°C / 4°F per ASTM standards.
- Max Distance Signal will travel is 170 Ft. without amplification.
- (Yellow ) Chromel + / (Red) Alumel
- Type "K" thermocouple grade wire Solid 20 Ga. - cut to your required length
- Expert Technical Support
Can Fray and fall about above 900°F - consider Stainless Steel Overbraid over the wire.
