⚫ "J" Thermocouple Grade Wire w/ SSOB

$1.35

Quantity	Price
25 – 99	$1.35
100 – 249	$1.08
250 – 499	$0.95
500 – 999	$0.81
1000 +	$0.68

SKU: TIPWRJ017

Provided: Feet

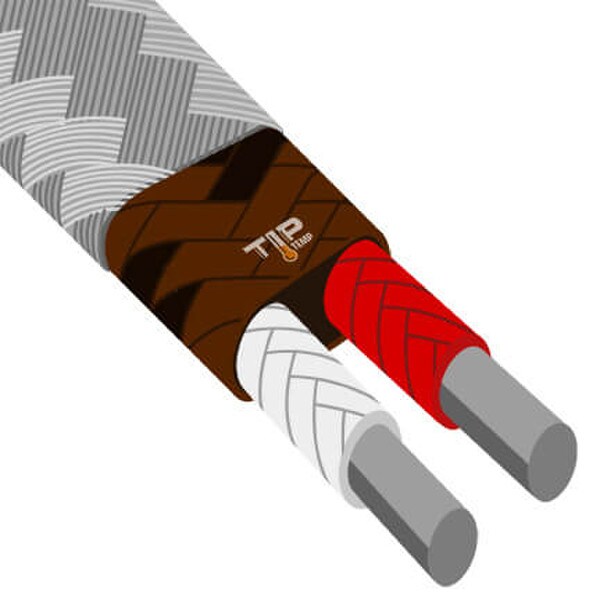

24 AWG solid wire with fiberglass insulation stainless steel overbraid

──────────────────────────

Quick Specs

🌡 Thermocouple Type: ⚫ J (Iron / Constantan)
🛡️ Conductor Size: 24 AWG Solid
🛡️ Insulation / Jacket: Fiberglass with Stainless Steel Overbraid
🌡 Max Jacket Temperature: 900°F (482°C)
🎯 Accuracy: ±2°C / ±4°F (ASTM Standard Limits)
🎨 Polarity: White (+ Iron, Magnetic) / Red (– Constantan)
📏 Sold As: Per Foot (Cut to Length)
📡 Max Signal Distance: 110 ft (without amplification)
🔩 Protection: Stainless Steel Overbraid (SSOB)
🏷️ Model: IWJ-24-GG-SSOB
🏷️ SKU: TIPWRJ017

──────────────────────────

📦 Browse the related products below, explore compatible Type J thermocouples, connectors, and instrumentation that integrate with this wire.
🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Max Distance Signal will travel is 110 Ft. without amplification.

IN STOCK

Current Stock: 77

Quantity

Notable Features

Back

✅ Thermocouple grade Type J wire for direct temperature sensing
✅ Fiberglass insulation rated to 900°F (482°C)
✅ Stainless steel overbraid helps protect fiberglass insulation
✅ SSOB construction aids when pulling wire through conduit
✅ 24 AWG solid conductors for stable signal transmission
✅ ANSI color-coded conductors for correct polarity
✅ White Iron conductor is magnetic for easy identification
✅ Ideal for industrial, furnace, and harsh-environment installations

──────────────────────────Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.

Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.

Calibration	Wire Insulation	Max Temp	Gauge	Wire Type	Signal Dist.	Product Code
J + Iron - Constantan Positive = White Negative = Red	GLASS BRAID on each conductor GLASS BRAID overall	900 F 482 C	20	solid	280 ft	IWJ-20-GG
			20	stranded	280 ft	IWJ-20s-GG
			24	solid	110 ft	IWJ-24-GG
			24	stranded	110 ft	IWJ-24s-GG
			28	solid	44 ft	IWJ-28-GG
			30	solid	27 ft	IWJ-30-GG
			36	solid	7 ft	IWJ-36-GG
	STAINLESS STEEL OVERBRAID		20	solid	280 ft	IWJ-20-GG-SSOB
			20	stranded	280 ft	IWJ-20s-GG-SSOB
			24	solid	110 ft	IWJ-24-GG-SSOB
			24	stranded	110 ft	IWJ-24s-GG-SSOB
	TEFLON on each conductor TEFLON overall	500 F 260 C	20	solid	280 ft	IWJ-20-TT
			20	stranded	280 ft	IWJ-20s-TT
			22	stranded	200 ft	IWJ-22s-TT
			24	stranded	110 ft	IWJ-24s-TT
			24	solid	110 ft	IWJ-24-TT
			30	solid	27 ft	IWJ-30-TT
			36	solid	7 ft	IWJ-36-TT
			40	solid	8 in	IWJ-40-TT
	STAINLESS STEEL OVERBRAID		20	solid	280 ft	IWJ-20-TT-SSOB
			20	stranded	280 ft	IWJ-20s-TT-SSOB
			24	solid	110 ft	IWJ-24-TT-SSOB
			24	stranded	110 ft	IWJ-24s-TT-SSOB

*"Signal Dist." relates to how far thermocouple signal travels without amplification.
