“K” Thermocouple Grade Wire, 30 Ga. Solid

(0)No Reviews yet
$0.75
QuantityPrice
25 – 99$0.75
100 – 249$0.60
250 – 499$0.55
500 – 999$0.52
1000 +$0.50
SKU: TIPWRK001
Provided: Feet

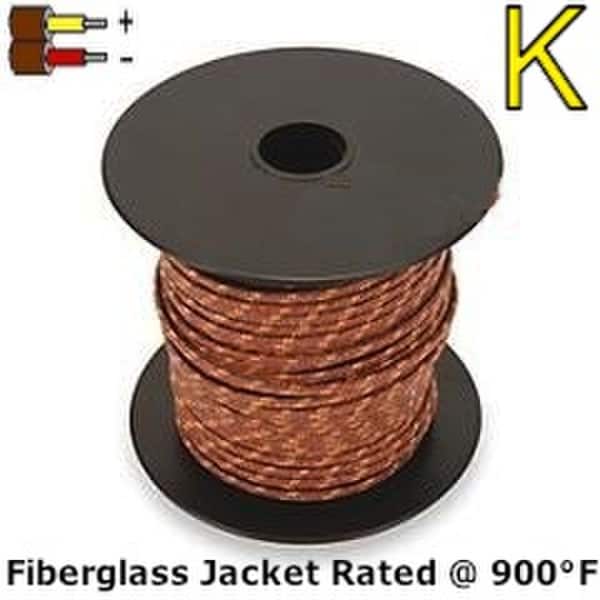

Fiberglass Jacket: Max 900°F / 482°C

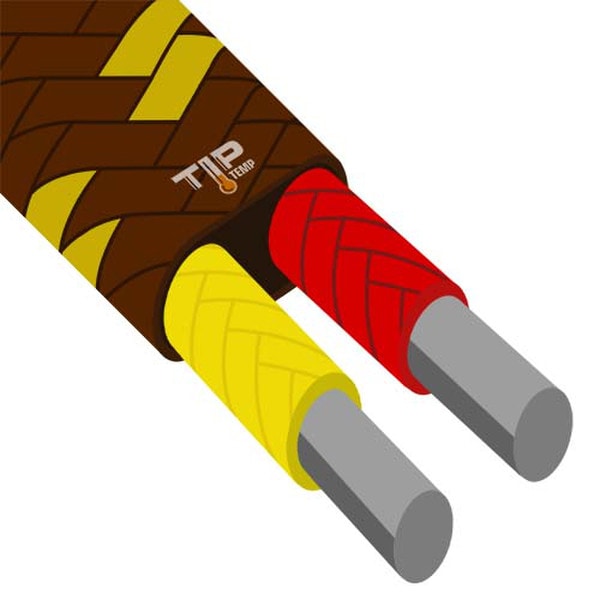

(Yellow ) Chromel + / (Red) Alumel - ( Red is also Magnetic )
Type “K” Wire, Fiberglass Jacket, 30 Ga. Solid
Max Distance Signal will travel is 17 Ft. without amplification

IN STOCK

Current Stock: 12

Notable Features

Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.


Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.

K+ Chromel

- Alumel
Positive =
Yellow

Negative =
Red
Wire InsulationMax
Temp
GaugeWire TypeSignal
Dist.
Product Code
GLASS BRAID
on each conductor
GLASS BRAID
overall
900 F
482 C
20solid170 ftIWK-20-GG
20stranded170 ftIWK-20s-GG
24solid67 ftIWK-24-GG
24stranded67 ftIWK-24s-GG
28solid28 ftIWK-28-GG
30solid17 ft IWK-30-GG
36solid4 ftIWK-36-GG
STAINLESS STEEL
OVERBRAID
20solid170 ftIWK-20-GG-SSOB
20stranded170 ftIWK-20s-GG-SSOB
24solid67 ftIWK-24-GG-SSOB
24stranded67 ftIWK-24s-GG-SSOB
TEFLON
on each conductor

TEFLON
overall
500 F
260 C
20solid170 ftIWK-20-TT
20stranded170 ftIWK-20s-TT
22stranded110 ftIWK-22s-TT
24stranded67 ftIWK-24s-TT
24solid67 ftIWK-24-TT
30solid17 ftIWK-30-TT
36solid4 ftIWK-36-TT
40solid7 inIWK-40-TT
STAINLESS STEEL
OVERBRAID
20solid170 ftIWK-20-TT-SSOB
20stranded170 ftIWK-20s-TT-SSOB
24solid67 ftIWK-24-TT-SSOB
24stranded67 ftIWK-24s-TT-SSOB


*"Signal Dist." relates to how far thermocouple signal travels without amplification.
  • Part Number IWK-30-GG / TIPWRK001
  • Type "K" Wire Fiberglass Jacket 30 Ga. Solid
  • Fiberglass is rated at max 900°F / 482°C
  • Accuracy ±2°C / 4°F per ASTM standards.
  • Max Distance Signal will travel is 17 Ft. without amplification.
  • (Yellow ) Chromel + / (Red) Alumel
  • Type "K" thermocouple grade wire Solid 30 Ga. - cut to your required length
  • Fiberglass Jacket Rated @ at max 900°F / 482°C
  • Expert Technical Support
Speak with a TIPTEMP Thermal Advisor
