“K” Thermocouple Grade Wire with Teflon Jacket
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
K | + Chromel - Alumel | Positive = Yellow Negative = Red | |||
Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
GLASS BRAID on each conductor GLASS BRAID overall | 900 F 482 C | 20 | solid | 170 ft | IWK-20-GG |
20 | stranded | 170 ft | IWK-20s-GG | ||
24 | solid | 67 ft | IWK-24-GG | ||
24 | stranded | 67 ft | IWK-24s-GG | ||
28 | solid | 28 ft | IWK-28-GG | ||
30 | solid | 17 ft | IWK-30-GG | ||
36 | solid | 4 ft | IWK-36-GG | ||
STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-GG-SSOB | |
20 | stranded | 170 ft | IWK-20s-GG-SSOB | ||
24 | solid | 67 ft | IWK-24-GG-SSOB | ||
24 | stranded | 67 ft | IWK-24s-GG-SSOB | ||
TEFLON on each conductor TEFLON overall | 500 F 260 C | 20 | solid | 170 ft | IWK-20-TT |
20 | stranded | 170 ft | IWK-20s-TT | ||
22 | stranded | 110 ft | IWK-22s-TT | ||
24 | stranded | 67 ft | IWK-24s-TT | ||
24 | solid | 67 ft | IWK-24-TT | ||
30 | solid | 17 ft | IWK-30-TT | ||
36 | solid | 4 ft | IWK-36-TT | ||
40 | solid | 7 in | IWK-40-TT | ||
STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-TT-SSOB | |
20 | stranded | 170 ft | IWK-20s-TT-SSOB | ||
24 | solid | 67 ft | IWK-24-TT-SSOB | ||
24 | stranded | 67 ft | IWK-24s-TT-SSOB |
*"Signal Dist." relates to how far thermocouple signal travels without amplification.

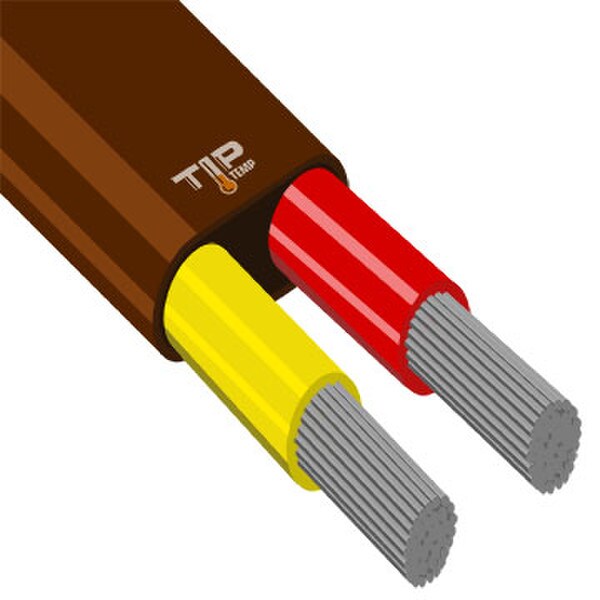

- Part Number IWK-20S-TT / TIPWRK072
- Type "K" Wire Teflon Jacket 20S Ga. Stranded
- Teflon is rated at max 400°F / 204°C
- Accuracy ±2°C / 4°F per ASTM standards.
- Max Distance Signal will travel is 170 Ft. without amplification.
- (Yellow ) Chromel + / (Red) Alumel ( Red is also Magnetic )
- Type "K" thermocouple grade wire - cut to your required length and priced per foot.
- Expert Technical Support
- How to Order Thermocouple Wire PDF
- Detailed Specifications For Extension Wire
- Max Distance Signal will travel is 170Ft. without amplification.
- Stranded wire is composed of a number of small wires bundled or wrapped together to form a larger conductor. Stranded wire is more flexible than solid wire of the same total cross-sectional area. Stranded wire tends to be a better conductor than solid wire because the individual wires collectively comprise a greater surface area. Naturally this wire is usually more expensive than solid.
