🟡 Type K Large Thermocouple Plug
The Type K Large Thermocouple Plug provides a reliable connection between Type K temperature sensors and compatible measurement instruments, temperature controllers, and industrial process control systems. Its standard-size, two-pole design supports organized thermocouple connections in industrial and laboratory applications.
The connector features Chromel (+) and Alumel (−) thermocouple contacts, maintaining the proper Type K conductor polarity. Its yellow color coding helps personnel identify the thermocouple type during installation, maintenance, and troubleshooting.

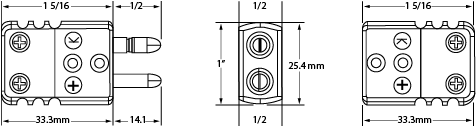

Rated for ambient temperatures up to 400°F (204°C), this large-format male plug is designed for use with compatible standard-size female thermocouple jacks. Optional cable clamps, grommets, and strain-relief accessories are available for secure cable assembly.
──────────────────────────
Ideal Applications
🏭 Industrial temperature monitoring
⚙️ Temperature controller connections
🌡 Type K thermocouple probe assemblies
🧪 Laboratory temperature measurement
📈 Temperature data acquisition systems
🔌 Process control and HMI panels
🧰 Thermocouple cable repair and maintenance
- Part Number: TIPACC044
- Type "K"
- Large Plug
- Yellow Color Code
- Max Temp: 400°F (205°C)
- "K" Type Large Thermocouple Plug
- Expert Technical Support
Compliance & Risk Mitigation
🟡 Yellow coding identifies Type K connections
⚡ Matched contacts support signal integrity
🔌 Verify polarity before installation
🌡 Observe the connector temperature rating
🧵 Match wire type to connector contacts
🧰 Use strain relief to reduce wire damage
📋 Inspect contacts during routine maintenance
⚖️ Verify complete measurement system accuracy
The 400°F (204°C) rating applies to the connector, not necessarily the thermocouple sensor or cable assembly. Confirm connector compatibility, conductor polarity, wire size, and installation temperature before use. This connector is intended for thermocouple measurement circuits.
──────────────────────────
