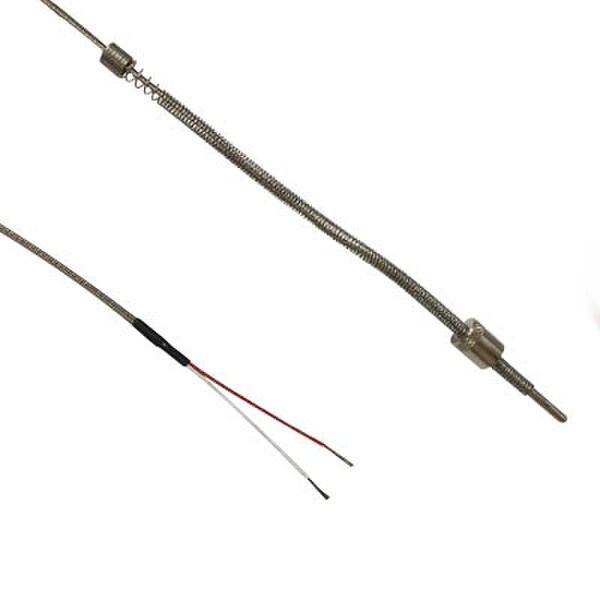

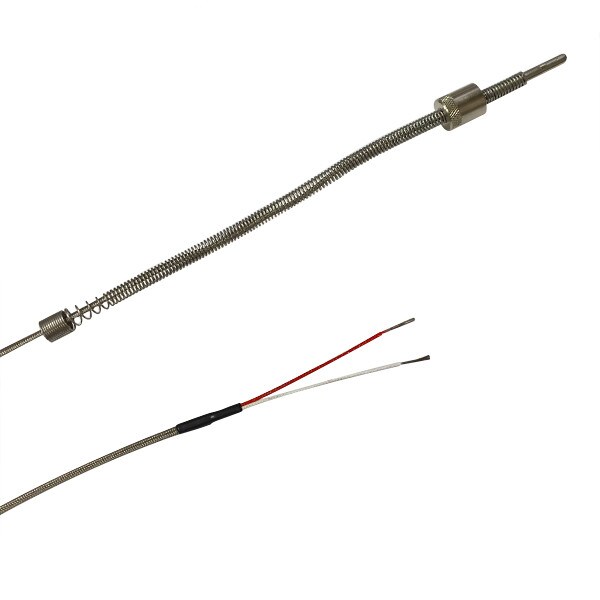

Bayonet Thermocouple Type "J" with 48" leads
TC42-48-J-6
Bayonet Thermocouple with Flexible metal braid and spring. (provides best spring tension on locknut.) Thermocouple "J" wire is 20 gauge stranded, 1" sheath, 316 SS Sheath, .187 dia, grounded junction. with 48" fiberglass with stainless steel overbraid & stripped leads
Bayonet Thermocouple with Flexible metal braid and spring. (provides best spring tension on locknut.) Thermocouple "J" wire is 20 gauge stranded, 1" sheath, 316 SS Sheath, .187 dia, grounded junction. with 48" fiberglass with stainless steel overbraid & stripped leads
| Temperature Sensing Range: | -58ºF ~ +570ºF (-50ºC ~ +300ºC) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Calibration Available: | Yes (purchased separately) |
| Thermocouple Type: | Thermocouple |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.187 |
| Sheath Length: | 1 Inch |
| Wire Material: | SSOB Fiberglass |
| Wire Gauge: | 20 Ga. |
| Wire Length: | 48 Inches |
| Plug Size: | Ordered Separately |
- Grounded Bayonet "J" Thermocouple
- Expert Technical Support
