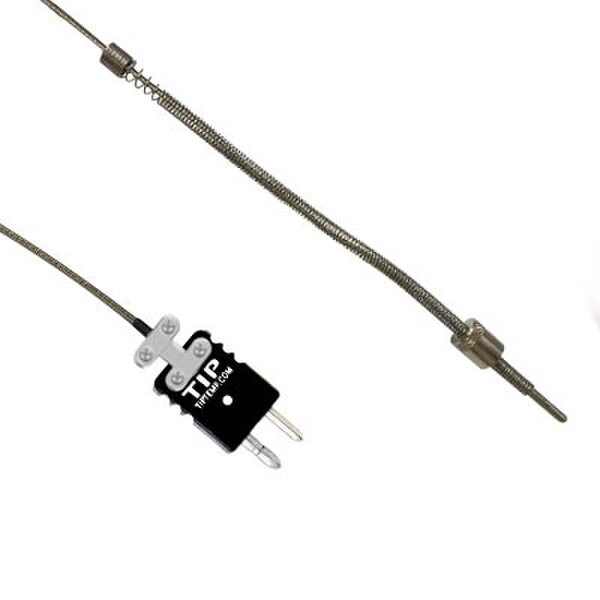

"J" Bayonet Style Thermocouple
TC42-60-J-1 Variable immersion bayonet thermocouple, type J, 1" Sheath, Grounded, 60" inches fiberglass with stainless steel over braided lead, Large plug termination.
Temperature Sensing Range: | -58ºF ~ +570ºF (-50ºC ~ +300ºC) |
Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
Calibration Available: | Yes (purchased separately) |
Thermocouple Type: | Thermocouple |
Sheath Material: | Stainless Steel |
Sheath Diameter: | 0.187 |
Sheath Length: | 1 Inch |
Wire Material: | SSOB Fiberglass |
Wire Gauge: | 20 Ga. |
Wire Length: | 60 Inches |
Plug Size: | Large |
- Type "J" Bayonet Thermocouple
- Expert Technical Support
