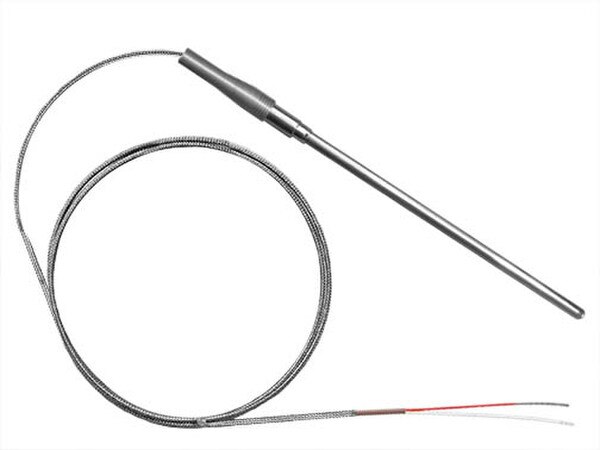

⚫ Type “J” Transition Style Thermocouple
The Type “J” Transition Style Thermocouple is built for rugged industrial temperature measurement where durability and flexibility are critical. This configuration features a 316 stainless steel sheath transitioning to a stainless steel over-braided lead wire for added mechanical protection.
With an ungrounded junction for electrical isolation and noise immunity, this probe is ideal for process control, ovens, plastics, machinery, and general industrial monitoring applications.
Part Number: TC16-J-SS-14-U-12-SSOB-20S-TT-120
──────────────────────────
Key Features
✅ Type “J” (Iron / Constantan) calibration
✅ 316 stainless steel sheath for corrosion resistance
✅ Transition design from rigid sheath to armored lead wire
✅ Ungrounded junction for electrical isolation and reduced noise
✅ 120" stainless steel over-braided lead with stripped ends
✅ Ideal for process control, ovens, and industrial environments
──────────────────────────
| Type of Sensor: | J Thermocouple |
| Temperature Sensing Range: | 32°F~1400°F(0°C~760) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Sensor Wire Length: | 120" |
| Calibration Available: | Yes (purchased separately) |
| Thermocouple Type: | Thermocouple |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.250 |
| Sheath Length: | 12" |
| Wire Material: | SSOB Teflon |
| Wire Gauge: | 20 |
| Wire Length: | 120" |
| Max Temp: | 1400°F (760°C) |
