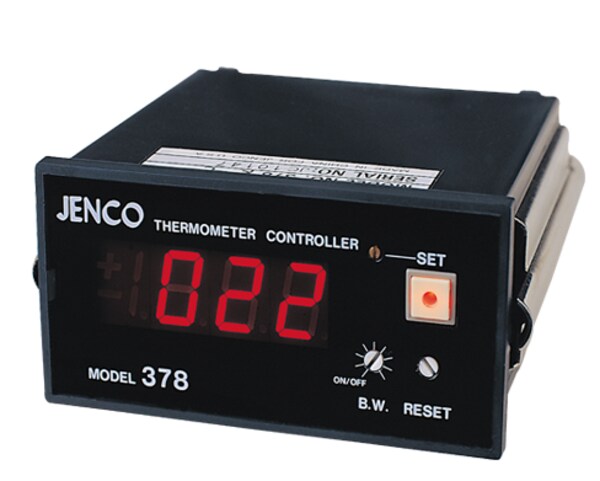

Temperature Controller with 8 Amp Relay

(0)No Reviews yet
$199.00
QuantityPrice
1 – 9$199.00
10 – 24$189.05
25 – 49$179.10
50 – 74$169.15
75 – 99$164.18
100 +$159.20
SKU: JENCON003
Provided: Each
0°F ~ 1000°F
Type "J" Thermocouple input
  • Analog output: Un-linearizationed output 1 mV/per degree, ± 0.3% of sp
  • Output relay: 8A at 115VAC, 4A at 230 VAC, resistive load.
1/8 DIN Panel Mount

IN STOCK

Current Stock: 1

Notable Features

Panel mount digital thermometer controller with analog voltage output of 1 mV per count, ± 3%, bright red LED display, 1/8 DIN plastic housing, hysteresis is ± 3°C or ± 5°F. Proportional Band-Width control Features manual adjust reset. Cycle time is 20 seconds ± 3 seconds. 115/230V AC operation.

Also available in type K-C°, K-F° and J-C° ( Call )
  • JENCON003 Model 378-JF
  • Temperature Range: 0-1000°F
  • Accuracy: ±0.5%
  • Reset: Manual adjust
  • Operating temperature: 0 to 40 °C
  • 1° Resolution
  • Hysteresis : F models: 10 °F (±5 °F)
  • Hysteresis : C models: 6 °C (±3 °C)
  • Cycle time: 20 sec.  ± 3 seconds
  • Analog output: Un-linearizationed output 1 mV/count, ± 0.3% of sp
  • T/C burnout: Up scale
  • Output relay: 8A at 115VAC, 4A at 230 VAC, resistive load.
  • Power source: 115 VAC, 230 VAC, ± 10% 50/60 hz
  • Dimensions: 96 x 48 x 105 mm
  • Jenco 378-JF Controller
  • Instruction Manual
  • Requires Thermocouple Sensor and Power Cord
  • Expert Technical Support
An accurate 1 mV per display count analog output is provided to interface the Temperature Controller with a recorder, printer and so on. The Temperature Controller uses a bright red LED screen. The Temperature Controllers are a single set point proportional/On-Off controller. The proportional bandwidth is adjustable from On-Off to 100 oC or 100 oF with built-in hysteresis. The cycle time is factory set to 20 second ± 3 seconds. The Temperature Controllers have a front panel manual adjust reset potentiometer. The Temperature Controllers are 1/8 DIN front panel mount inside of a plastic housing. Temperature probe connections are made via spade lug connectors.
