  • CALCON007: CAL 9500-1P-A000 Controller

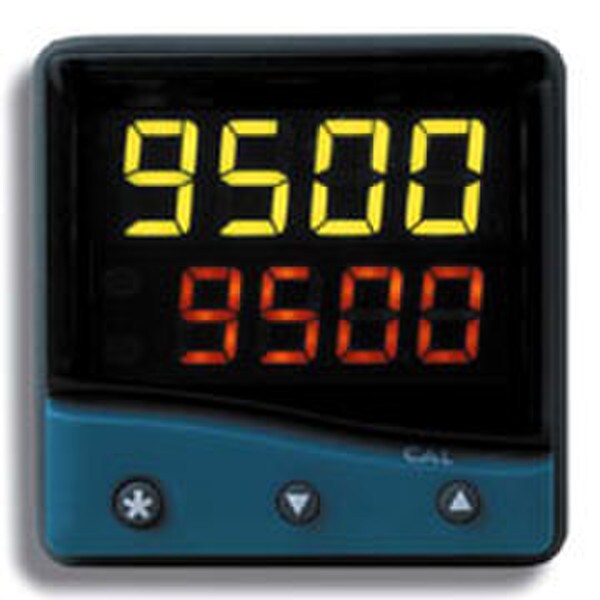

CAL 9500-1P-A000 1/16 Din Temp-Controller

(0)No Reviews yet
QuantityPrice
SKU: CALCON007
Provided: Each
Input Types: TC RTD 0-5V0-10V4/20mA
Autotune PID Temperature Controller
  • Three-outputs Choose - SSR Relay / 4/20mA / 0-10V
  • Full PID auto-tuning temperature controllers
  • Bright LED displays
  • Alarms with 5 options
  • PID heat-cool operation
  • Ramp / Soak
  • Sleeve mounting for easy maintenance
  • IP66 protection from front panel
  • 3-year warranty
  • Charting and logging software option
  • RS232/485 Modbus option
  • Notable Features

    CAL's latest range of controllers all provide the user with the benefits of an easy to use ˜autotune' programme (so that you don't need to understand PID to set-up a controller).
    Each one has the option to add a communications board so that you can connect them to a PC. The best way to use these controllers with a PC is with CAL's data-logging and chart-recorder software CALgrafix


    9500-1P-A000
    95: Cal 1/16 din Autotuning PID temperature controller.100-240VAC power supply.
    00: SSd / Relay/  (SSd to switch a remote SSR 5Vdc +0/-15% 15mA non-isolated) / ( Relays  form A/SPST contacts 2A/250 VAC resistive load).
    1: Output 3 always a relay
    P: Programmer
    A: Input is a Sensor
    0: No communications fitted
    00: Unused
    • Part number CALCON007
    • Multiple inputs to Choose: TC RTD 0-5V0-10V4/20mA
    • Three-outputs Choose - SSRRelay4/20mA0-50-10
    • Full PID autotuning temperature controllers
    • Bright LED displays
    • Alarms with 5 options
    • PID heat-cool operation
    • Ramp / Soak
    • Sleeve mounting for easy maintenance
    • IP66 protection from front panel
    • 3-year warranty
    • Charting and logging software option
    • RS232/485 Modbus option
    • (1) CAL Controller
    • (1) Instruction Manual
    • Expert Technical Support
