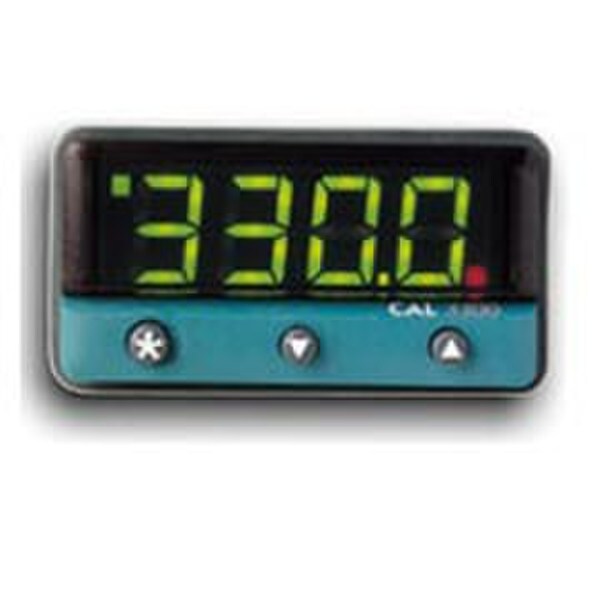

CAL 3300 Series Controller 24V Power Supply

(0)No Reviews yet
QuantityPrice
SKU: CALCON043
Provided: Each
Compact 1/32nd DIN Autotune PID Temperature Controller
The CAL 3300 Series Controller is an easy-to-use, inexpensive, and reliable temperature controller.
Back

A key feature of the CAL Controls 3300 Series is the standard autotune functionality. Autotune "teaches" the controller the main characteristics of the process. For best results, run Autotune with the usual set-point temperature under normal load conditions. Autotune "learns" by cycling the output on and off. The results are measured and used to calculate optimum PID values, which are automatically entered in the controller memory. Standard inputs to the CAL Controls 3300 Series are 9 types of thermocouples as well as RTD-2/Pt100 2-wire resistance thermometers. Output devices include the solid state relay drive and miniature power relay.
Back
  • Part number CALCON043
  • Full PID autotuning temperature controllers
  • Bright LED displays
  • Dual-outputs
  • Alarms with 5 options
  • PID heat-cool operation
  • Ramp to set point
  • Sleeve mounting for easy maintenance
  • IP66 protection from front panel
  • 3-year warranty
  • Charting and logging software option
  • RS232/485 Modbus option
Back
  • (1) Instruction Manual
  • (1) CAL Controller
  • Standard with 2 Outputs: (SSd to switch a remote SSR 5Vdc +0/-15% 15mA non-isolated) ( Relay form A/SPST contacts 2A/250 VAC resistive load)
  • 24Vdc power supply.
  • Fully Programmable for Thermocouple 2 Wire RTD & mV.
  • 5 alarm modes full scale deviation and band.
