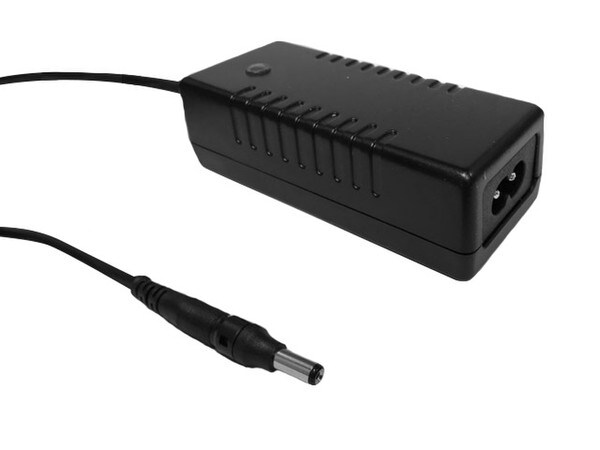

RF500A / Power Supply for RF500A Transmitter
Technical Specifications
| Name | Value | |
|---|---|---|
| Output Voltage | 12V DC 1000mA (1A) | |
| Input Voltage | 100-240V AC | |
| Nominal Input Frequency | 50-60Hz | |
| Nominal Input Current | 0,280 - 0,140Arms @ max load | |
| Connector Type | 2.1mm x 5.5mm Barrel Connector | |
| Lead Length | 1.8m Lead (excluding length of IEC Cable) | |
| Storage Temperature Range | -40°C to +70°C / -40°F to +158°F | |
| Operating Temperature Range | 0°C to +40°C / 32°F to +104°F | |
| Dimensions | 182mm x 44mm x 36mm | |
| Weight | Approx. 120g | |
| LED Indicators | 1 x Green (Power Indicator) |
