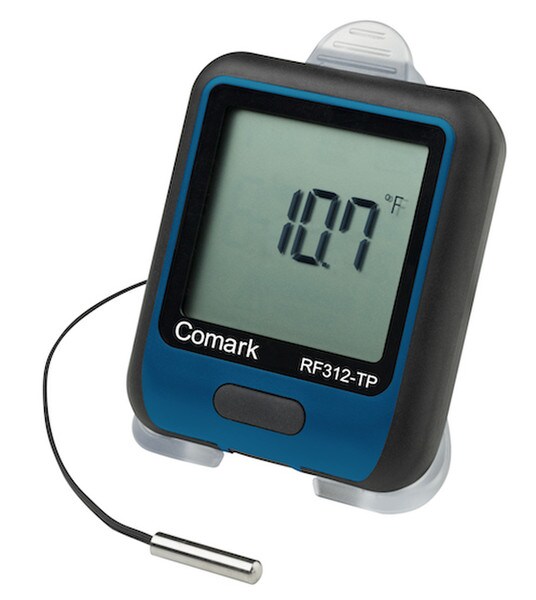

WiFi Temperature Data Logger with External Probe
The RF312-TPG data logger comes with an external temperature sensor allowing it to measure the temperature of environments that are not suitable for the logger itself, such as a fridge or freezer. Data is transmitted via a WiFi network to a PC and viewed using a free software package. During configuration the sensor will search for an existing wireless network when physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application (max 60 days at 10 second sample interval). The range of the instrument can be increased by using WiFi extenders.
| Type of Sensor: | Thermistor |
| Temperature Sensing Range: | -40°F ~ 257°F (-40°C ~ 125°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F or °C |
| Sensor Dimensions: | 3/16" diameter |
| Sensor Wire Length: | Cable 36" long |
| Min/Max Memory: | Yes |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | 6 Months Fully Charged |
| Battery Backup: | Yes |
| IP Rating: | IP55: Dust Resistant & Hosed water |
| Number of Sensors: | One |
| Data Points: | Logs 1 Million Readings by Transmitting the Data Back to PC Computer |
| Exportable Data: | Yes |
| Recording Rate: | 10 Second to 12 Hour |
| Display: | LCD |
| Requires Software: | Yes - Download from TIPTEMP.com |
| Software Type: | Current Windows Ver required for setup / installation. Any Web Browser to Manage Data, Reports, Alarms, etc. |
| Network Connectivity: | WiFi |
| WIFI Network Compatibility: | 802.11b/g/n Wireless Standards |
| Transmission Rate: | Configurable |
- Wifi Data Logger with external sensor
- FREE Software & Cloud Storage
- Battery
- Wall-Mount Clip
- Instructions
- Expert Tech Support
The software installed on the PC will allow set-up, data logging and data review. Set-up features will include sensor name, °C/°F, sample rate, and high/low alarms. Once configured, historic data can be viewed via the graphing tool or exported into Excel. This software is available for free from our Support page (link to support/downloads page).
New FREE Cloud Service allows for receiving email alerts and viewing data remotely.
Requires 802.11b compliant WiFi router/network. Compatible with Enterprise Networks from September 2013
Make sure you involve your IT Department.
New FREE Cloud Service allows for receiving email alerts and viewing data remotely.
Requires 802.11b compliant WiFi router/network. Compatible with Enterprise Networks from September 2013
Make sure you involve your IT Department.
New Unit requires initial 24 hr. power charge and will last 6 months
TIPTEMP recommends TIPKIT001 to power the instrument via USB power charger. If power is loss the system will send email / text message alerts and the rechargeable battery will take over.
As of Jan. 2022 FREE Software & Cloud Storage
