WiFi Data Logger Dual Thermocouple Input

(0)No Reviews yet
$499.88 $720.83
1 – 9$499.88
10 – 24$474.89
25 – 49$449.89
50 – 99$424.90
100 +$399.90
Provided: Each
-328 ~ 2462°F (-200 ~ 1350°C)
Rechargeable Battery or USB Power Adaptor
  • Remote Monitoring Cloud Storage
  • Sends Text Messages & Email Alerts
  • Rechargeable Battery  (Optional AC Power)
  • Configure Device using Smart Phone
Accepts Thermocouple Types J - K - T

Notable Features

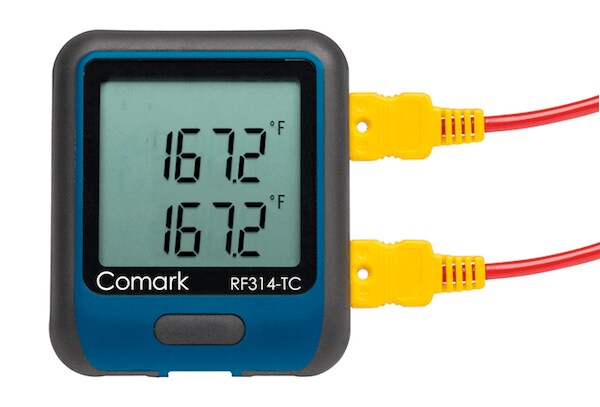

The RF314Dual WiFi Data Logger with Dual Thermocouple Input is designed to monitor a wide variety of applications including perishable items like Food, Vaccines, and low temperature.

With 802.11b/g/n compatibility, the RF314Dual will seamlessly communicate over your network to the cloud or on a local PC.

The RF314Dual is battery operated with an internal, rechargeable battery. You may purchase the power supply separately to permanently power the Logger.

Accepts two mini thermocouple plugs; type J, K, and T.

**Temperature Range of Various Thermocouple Types:
  • 0 to 200°C (32 to 392°F) K type (provided)
  • -200 to +1350°C / -328 to +2462°F K type
  • -200 to +1190°C / -328 to +2174°F J type
  • -200 to +390°C / -328 to +734°F T Type
Type of Sensor: Thermocouple J - K - T
Temperature Sensing Range: -328 to 2462°F (-200 to 1350°C)
Temperature Accuracy: +/- 4°F (+/- 2°C) typical
Temperature Resolution: 0.1°
Temperature Scale: °F or °C
Min/Max Memory: Yes
Dimensions: 3.23" x 2.75" x 1" (82mm x 70mm x 36mm)
Calibration Available: Yes (purchased separately)
Battery Life: >6 Months typical (with conservative Recording and Transmission rates)
Number of Sensors: 2
Exportable Data: Yes
Recording Rate: 10 Seconds to 12 Hours (User Configurable)
Display: LCD
Requires Software: Yes
Software Type: Windows 10, 8, 7 (32-bit and 64-Bit Versions)
Network Connectivity: WiFi
WIFI Network Compatibility: 802.11 b/g/n
Transmission Rate: 1 minute to 24 hours (User Configurable)
Plug Size: Mini
  • RF314Dual WiFi Data Logger with Dual Thermocouple Input
  • USB Cable
  • FREE software
  • Wall Mount
  • Rechargeable Battery
  • (2) Type K Thermocouple (range: 32 ~ 392°F / 0 ~ 200°C)
  • Expert Technical Support
  • Download and install FREE software
  • Plug RF312Glycol Wifi Data Logger into your Windows OS PC via the provided USB cable
  • Set up the WiFi logger on your WiFi network locally or via the Cloud.
