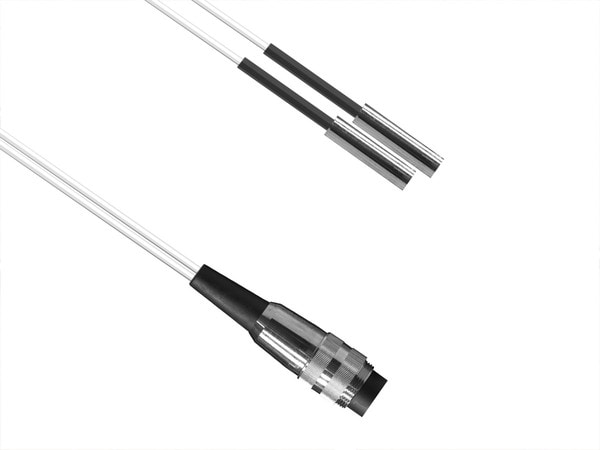

RFAX200D PST Air Probe Duplex
The RFAX200D PST Air Probe is a damped, duplex air probe for use with our wireless temperature monitoring systems. Each probe is connected to a 2.0m lead.
- Temperature Range: -40°F to +158°F / -40 to +70°C
- Sensor Type: PST (Thermistor)
- Connector Type: Lumberg (6-Pin)
The RFAX200D PST Air Probe is fitted with a 6-Pin Lumberg connector with a locking screw to provide a strong and secure probe-to-instrument connection and better liquid ingress prevention.
Technical Specifications
| Name | Value |
|---|---|
| Lead length | 2 x 2.0m |
| Connector Type | Lumberg |
| Sensor Type | PST (Thermistor) |
| Lead Material | PVA |
| Stem Length | 30mm |
| Stem Diameter | 8mm |
| Temperature Range | -40 to +70°C / -40°F to +158°F |
| Wire Type | Flat-Twin |
- RFAX200D PST (Thermistor) Air Probe DUPLEX
